74139 2 to 4 Decoder/Demultiplexer


Write a review | 1 reviews

  • Stock: 5

    Availability: InStock priceValidUntil: 2026-04-27

  • SKU: 290 | DAA248

Availability: InStock priceValidUntil: 2026-04-27

  • Rs. 17.70 (inc GST)
    Rs.15.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

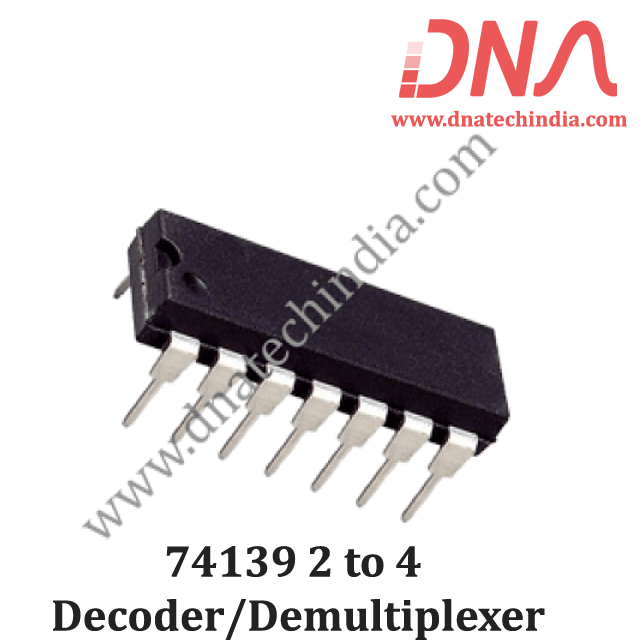

74139 2 to 4 Decoder/Demultiplexer

The M54/74HC139 is a high speed CMOS DUAL TWO LINE TO FOUR LINE DECODER / DEMULTIPLEXER fabricated in silicon gate C2 MOS technology.

It has the same high speed performance of LSTTL combined with true CMOS low power consumption. The active low enable input can be used for gating or as a data input for demultiplexing applications.
While the enable input is held high, all four outputs are high independently of the other inputs. All inputs are equipped with protection circuits against static discharge and transient excess voltage.

We have Various sizes of 7400 Series IC. Check out our complete collection of 7400 Series IC.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Feature :

  • HIGH SPEED - tPD = 12 ns (TYP.) AT VCC =5V
  • LOW POWER DISSIPATION - ICC = 4 µA (MAX.) AT TA = 25 °C
  • HIGH NOISE IMMUNITY - VNIH = VNIL = 28 % VCC (MIN.)
  • OUTPUT DRIVE CAPABILITY - 10 LSTTL LOADS
  • SYMMETRICAL OUTPUT IMPEDANCE - |IOH|=IOL = 4 mA (MIN.)
  • BALANCED PROPAGATION DELAYS - tPLH = tPHL
  • WIDE OPERATING VOLTAGE RANGE - VCC (OPR) = 2 V TO 6 V
  • PIN AND FUNCTION COMPATIBLE WITH 54/74LS139
