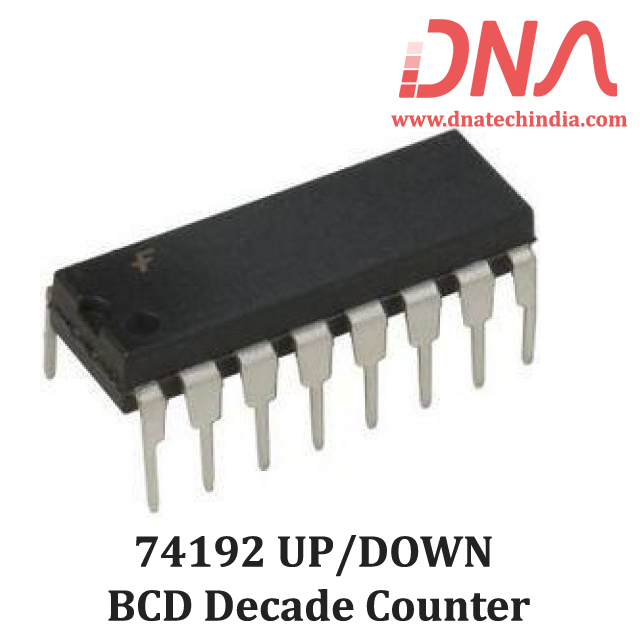

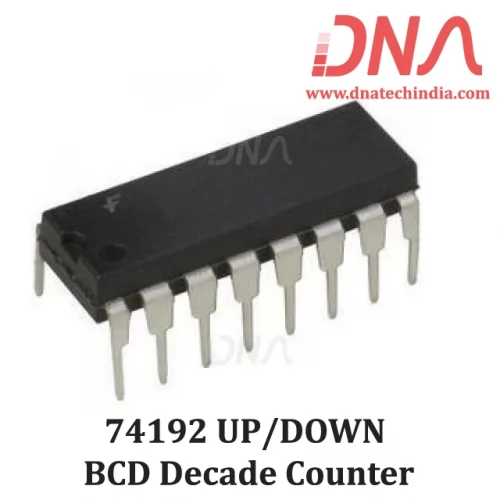

74192 UP/DOWN BCD Decade Counter

SN74LS192 UP/DOWN BCD Decade Counter

SN74LS192 UP/DOWN BCD Counter with Low Power, High Speed, and Synchronous Counting.

The SN74LS192 UP/DOWN BCD Decade Counter is engineered for efficient counting in electronic circuits. It features separate Count Up and Count Down clocks, enabling synchronous operation during counting. This counter operates with a typical count frequency of 40 MHz and consumes low power at 95 mW. With individual preset inputs, you can program it for various counting applications.

Integrating the 7400 Series SN74LS192 into your designs simplifies multistage counter configurations. The asynchronous Master Reset and Parallel Load inputs allow for quick adjustments. This device is ideal for applications needing precise counting and timing functions, such as digital clocks and frequency counters.

Choose the SN74LS192 UP/DOWN BCD Decade Counter for reliable performance in your electronic projects. It is a versatile component suitable for both hobbyists and professionals in India. Explore our extensive range of 7400 Series ICs to find the perfect match for your needs.

Explore the reliability of the 7400 Series IC's at DNA. We offer quality components from trusted manufacturers. Check other 7400 Series IC's that we have in stock.

If you are searching for specific electronic components, DNA can assist you. We can import parts not in stock and support both retail and bulk orders. Consider related items like Hongfa Relay, Programmer, LCD, Sensor Module, Transistor, and Development Module. Contact Us

Features of SN74LS192 UP/DOWN BCD Decade Counter

• Low Power 95 mW Typical Dissipation
• High Speed 40 MHz Typical Count Frequency
• Synchronous Counting
• Asynchronous Master Reset and Parallel Load
• Individual Preset Inputs
• Cascading Circuitry Internally Provided
• Input Clamp Diodes Limit High Speed Termination Effects

Specification of SN74LS192 UP/DOWN BCD Decade Counter

• Count Type: UP/DOWN
• Power Supply: 4.75V to 5.25V
• Operating Temperature: 0°C to 70°C

Applications of SN74LS192 UP/DOWN BCD Decade Counter

• Digital Clocks
• Frequency Counters
• Programmable Counting Systems
• Timing Devices
• Electronic Measurement Equipment

Related Links for SN74LS192 UP/DOWN BCD Decade Counter

• Other Products from 7400 Series IC's Category

Package Includes

• 1 X SN74LS192 UP/DOWN BCD Decade Counter
