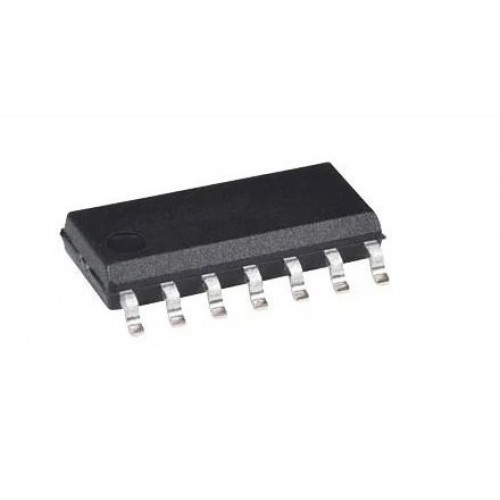

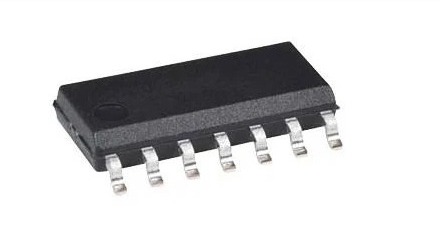

74LS08 QUAD 2 INPUT AND GATE SMD IC

74LS08 Quad 2 Input AND Gate SMD IC

74LS08 Quad 2 Input AND Gate SMD IC; Low power consumption; High-speed logic operations.

The 74LS08 Quad 2 Input AND Gate SMD IC is a versatile component from the Low Power Schottky TTL logic family. It features four independent AND gates, each capable of processing two inputs. This IC is ideal for digital circuit applications requiring efficient logic processing and signal manipulation. With a typical operating voltage of 5V DC, it ensures reliable performance in various environments.

This 74LS08 Quad 2 Input AND Gate SMD IC offers a fast switching speed and low power consumption, making it suitable for modern electronic designs. It is compatible with standard TTL voltage levels, ensuring broad usability across various applications. The IC operates efficiently over a wide voltage range of 4.75V to 5.25V, supporting diverse circuit configurations.

Engineered for reliability, the 74LS08 Quad 2 Input AND Gate SMD IC is perfect for logic functions in consumer electronics, industrial automation, and communication devices. Explore how this component can enhance your next project with its robust features and specifications.

Explore the reliable range of "7400 Series IC's" from DNA, your go-to retailer for quality electronic components. Check other "7400 Series IC's" that we have in stock.

At DNA, we cater to all your electronic component needs. If you're looking for specific parts like Capacitors, Analog ICs, Resistors, Inductors, MOSFETs, or IGBTs, reach out to us. We can even import items if they're not in stock. Contact Us.

Features of 74LS08 Quad 2 Input AND Gate SMD IC

• Quad AND Gates
• TTL Compatible
• Fast Switching Speed
• Low Power Consumption
• Wide Operating Voltage Range

Specification of 74LS08 Quad 2 Input AND Gate SMD IC

• Logic Type: Quad 2-Input AND Gate
• Number of Gates: 4
• Number of Inputs per Gate: 2
• Operating Voltage: 4.75V to 5.25V
• Operating Temperature: 0°C to +70°C
• Package Types: SOIC-14, TSSOP-14, SOP-14

Applications of 74LS08 Quad 2 Input AND Gate SMD IC

• Digital circuit logic processing
• Signal manipulation
• Consumer electronics
• Industrial automation
• Communication devices

Package Includes

• 1 X 74LS08 Quad 2 Input AND Gate SMD IC
