• DAC0808 8-bit DAC

Product Images are shown for illustrative purposes only and may differ from actual product.

DAC0808 8-bit DAC

  • Stock: 13
  • SKU: 0271 | DAA023
  • Rs. 106.20 (inc GST)
    Rs.90.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

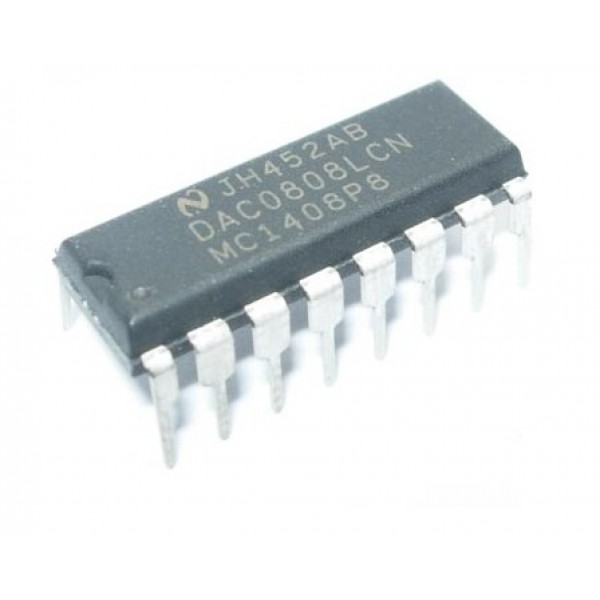

DAC0808 8-bit DAC

DAC0808 is a 8-bit Digital to analog converter (DAC).

It can be easily interfaced to Microcontrollers like Microchip's PIC series, 8051 series, Atmel's AVR microcontrollers. It can also be used with Arduino and Raspberry pi.
DAC0808 features a full scale output current settling time of 150 ns while dissipating only 33 mW with ±5V supplies. No reference current (IREF) trimming is required for most applications since the full scale output current is typically ±1 LSB of 255 IREF/256. Relative accuracies of better than ±0.19% assure 8-bit monotonicity and linearity while zero level output current of less than 4 µA provides 8-bit zero accuracy for IREF≥2 mA. The power supply currents of the DAC0808 is independent of bit codes, and exhibits essentially constant device characteristics over the entire supply voltage range. The DAC0808 will interface directly with popular TTL, DTL or CMOS logic levels, and is a direct replacement for the MC1508/MC1408.

Features of DAC0808

  • Relative accuracy : ±0.19% error maximum
  • Full scale current match : ±1 LSB typ
  • Fast settling time : 150 ns typ
  • Noninverting digital inputs are TTL and CMOS compatible
  • High speed multiplying input slew rate : 8 mA/µs
  • Power supply voltage range : ±4.5V to ±18V
  • Low power consumption : 33 mW @ ±5V

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
