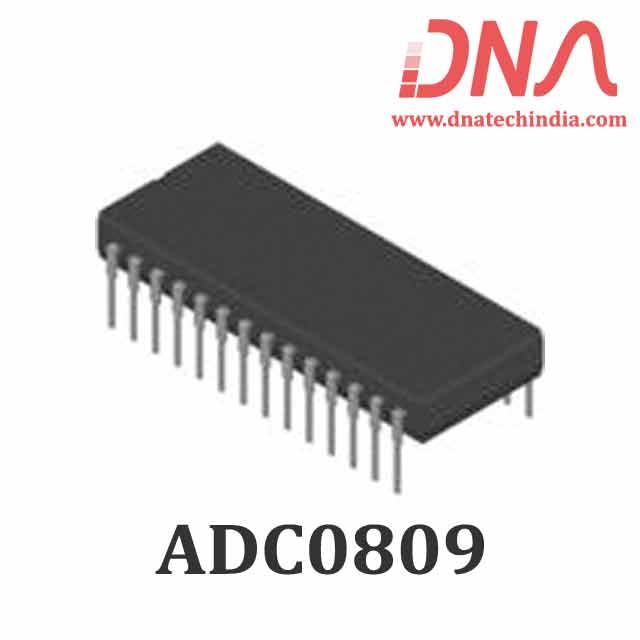

ADC0809 - 8-bit A/D Convertor with 8-Channel Multiplexer

Write a review | 2 reviews

Stock: 10
Availability: InStock priceValidUntil: 2026-10-21
SKU: 2547 | DAA022

Rs. 192.34 (inc GST)
Rs.163.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

ADC0809 8-bit Analog to Digital Converter

ADC0809 A/D Converter with 8-channel multiplexer, high accuracy, minimal power consumption.

The ADC0809 8-bit Analog to Digital Converter is a versatile component for data acquisition. It features an 8-channel multiplexer that allows direct access to 8 single-ended analog signals. This A/D converter uses a successive approximation technique, ensuring high speed and accuracy in the conversion process. It operates within a 0V to 5V analog input voltage range, making it suitable for various applications.

Designed for easy interfacing with microprocessors, the ADC0809 8-bit Analog to Digital Converter eliminates the need for external adjustments. Its on-chip clock generator and TTL compatible outputs streamline integration into existing systems. This product is ideal for both consumer electronics and automotive applications, where precision and reliability are essential.

Choose the ADC0809 8-bit Analog to Digital Converter for your next project. With its excellent long-term accuracy and minimal power requirements, it stands out as a dependable choice for process control and machine automation. Explore how this component can enhance your designs today.

Explore the world of ADC & DAC with DNA. The ADC0809 by a leading manufacturer delivers precision and reliability. Check other ADC & DAC that we have in stock.

If you need more electronic components, DNA is here to assist Indian buyers. We can import parts not listed and support retail or bulk orders. Explore related items like Power Supply, Inductor, Programmer, DC to DC Converter Module, Transistor, Microcontroller. Contact Us.

Features of ADC0809 8-bit Analog to Digital Converter

8-channel A/D inputs with addressable multiplexer
Easy interface to all microprocessors
Operates ratiometrically or with 5V supply
On-chip clock generator
0V to 5V analog input voltage range
No zero or full scale adjustment required.

Specification of ADC0809 8-bit Analog to Digital Converter

8-bit resolution
8-channel multiplexer
High impedance chopper stabilized comparator
TTL compatible outputs
Minimal power consumption.

Applications of ADC0809 8-bit Analog to Digital Converter

Process control
Machine automation
Consumer electronics
Automotive applications.

Package Includes

1 X ADC0809 8-bit Analog to Digital Converter

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
