• MCP4802 8-Bit DAC

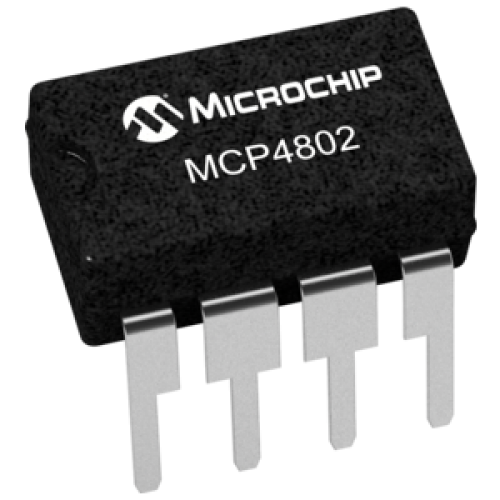

Product Images are shown for illustrative purposes only and may differ from actual product.

MCP4802 8-Bit DAC

  • Stock: Out Of Stock
  • SKU: 0648 | DAA038
  • Rs. 259.60 (inc GST)
    Rs.220.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

MCP4802 8-Bit DAC

MCP4802 is a dual channel 8-bit Digital-to-Analog converter (DAC) with internal voltage reference.

This device offers high accuracy and low power consumption, and is available in various packages. Communication with the device is accomplished via a simple serial interface using SPI protocols.

The MCP4802 DAC is a part of the MCP4802/MCP4812/MCP4822 product family, which are dual channel 8-bit/10-bit/12-bit DACs with internal voltage reference (VREF). These devices provide very high accuracy and low noise performance, and are suitable for consumer and industrial applications, such as set point control, offset adjustment and sensor calibration applications. The low power consumption and small package options make these devices very attractive for many portable and battery-powered applications. If one output is needed then the MCP4801/4811/4821 single channel product family can be used.

Features of MCP4802 8-Bit Digital-to-Analog Converter

  • 8-bit Resolution

  • Dual Channel Voltage Output

  • 2.7V to 5.5V Operation

  • Operating Current 330 µA (typ)

  • Internal Voltage Reference 2.048V

  • Selectable Unity or 2x Gain Output

  • INL ±0.125 LSB (typ)

  • DNL ±0.5 LSB (max)

  • Output Settling Time 4.5 µs

  • SPI Interface

  • 8-pin PDIP, SOIC, MSOP and 2x3 DFN packages

  • Temperature Range -40°C to +125°C

  • AEC-Q100 Grade 1 quarlified

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
