Product Images are shown for illustrative purposes only and may differ from actual product.

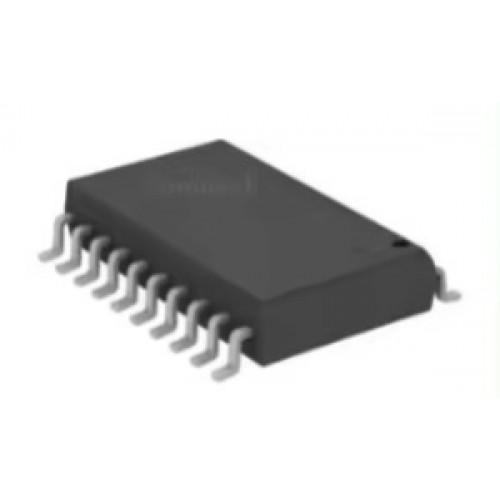

HCT541 Octal Buffers and Line Drivers with 3 State Outputs IC
- Stock: 2
- SKU: 7428 | DAH353
-
Rs. 136.29 (inc GST)
Rs.115.50 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
HCT541 Octal Buffers and Line Drivers with 3 State Outputs IC
HCT541 Octal Buffers and Line Drivers with 3 State Outputs IC
The HCT541 octal buffers and line drivers are designed to have the performance of the popular ’HC240series devices and to offer a pinout with inputs and outputs on opposite sides of the package. This arrangement greatly facilitates printed circuit board layout. The 3-state control gate is a 2-input NOR. If either output-enable (OE1 or OE2) input is high, all eight outputs are in the high-impedance state. The’HCT541 devices provide true data at the outputs.
DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of HCT541 Octal Buffers and Line Drivers with 3 State Outputs IC
- Operating Voltage Range of 4.5 V to 5.5 V
- High-Current 3-State Outputs Interface Directly With System Bus or Can Drive Up To 15 LSTTL Loads
- Low Power Consumption, 80-μA Max ICC
- Typical tpd= 12 nsD±6-mA Output Drive at 5 V
- Low Input Current of 1 μA Max
- Inputs Are TTL-Voltage Compatible
- Data Flow-Through Pinout (All Inputs on Opposite Side From Outputs)
Specifications of HCT541 Octal Buffers and Line Drivers with 3 State Outputs IC
- Number of Channels: 8 independent buffer channels.
- Operating Voltage: VCC: 4.5V to 5.5V (typically 5V).
- Input Voltage (VI): Accepts TTL-compatible input signals.
- Output Current: High-Level Output Current (IOH): -6 mA.
- Propagation Delay: Typically around 12 ns at 5V.
Package Includes
- 1 x HCT541 Octal Buffers and Line Drivers with 3 State Outputs IC
