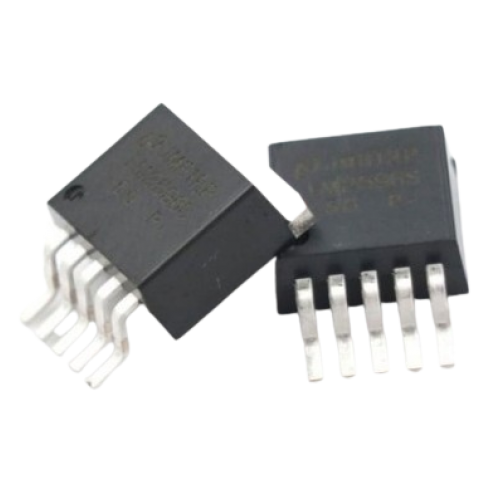

LM2596S 12 Volts Fixed Voltage Converter (TO‑263)

LM2596S 12 Volts Fixed Voltage Converter (TO‑263)

The LM2596S 12 Volts Fixed Voltage Converter is a high-efficiency, monolithic buck regulator packaged in TO‑263‑5 (D2PAK), delivering up to 3 A output at a precise 12 V from input voltages up to 40 V. It incorporates fixed-frequency (150 kHz) switching, internal compensation, thermal shutdown, current-limit protection, and a TTL shutdown pin, requiring only a few external components.

DNA Solutions, Nashik stocks these regulators for power supply and embedded projects. Explore our full range of LM2596 Buck Converters.

Features of LM2596S 12 V Fixed Converter

• Fixed 12 V output, up to 3 A load

• 150 kHz internal switching frequency

• Thermal shutdown and current-limit protection

• TTL-compatible ON/OFF shut-down

• Requires minimal external components

Specifications of LM2596S 12 V Fixed Converter

• Input Voltage Range: 4.5 V to 40 V

• Output Voltage: 12 V ±4% (fixed)

• Maximum Output Current: 3 A

• Package: TO‑263‑5 (D2PAK) surface-mount

• Operating Temperature: –40 °C to +125 °C

Applications of LM2596S 12 V Fixed Converter

• DC‑DC power supplies for embedded systems

• Battery-powered devices and chargers

• Industrial control circuits

• On‑card switching regulators for appliances

Package Includes

   1 × LM2596S 12 V Fixed Voltage Converter (TO‑263 )
