  • LSF0204PWR Voltage Level Translator SMD IC

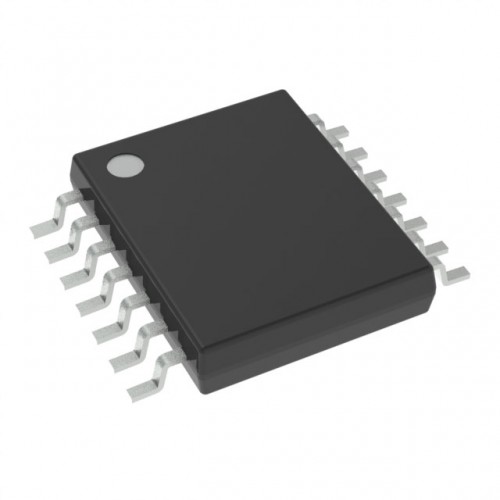

Product Images are shown for illustrative purposes only and may differ from actual product.

LSF0204PWR Voltage Level Translator SMD IC


Write a review | 0 reviews

  • Stock: Out Of Stock
  • SKU: 9456 | DAI325
  • Rs. 168.15 (inc GST)
    Rs.142.50 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

LSF0204PWR Voltage Level Translator SMD IC

LSF0204PWR Voltage Level Translator SMD IC

The LSF0204PWR is a 4-bit bidirectional multi-voltage level translator IC from Texas Instruments. Designed for open-drain and push-pull applications, it enables safe and efficient voltage-level shifting between different logic levels (e.g., 1.2V, 1.8V, 2.5V, 3.3V, and 5V). This compact, low-power device is ideal for interfacing between I²C, SPI, UART, and GPIO lines in mixed-voltage systems.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of LSF0204PWR Voltage Level Translator SMD IC

  • 4-channel bidirectional level shifting
  • Supports open-drain and push-pull interfaces
  • Wide voltage range: 0.95V to 3.6V and 1.65V to 5.5V
  • No direction control pin required
  • Ultra-low static power consumption
  • Available in TSSOP-14 (PWR) package
  • Compatible with standard logic families

Specifications of LSF0204PWR Voltage Level Translator SMD IC

  • Part Number: LSF0204PWR
  • Function: Voltage Level Translator, Bidirectional
  • Channels: 4
  • Vref A Range: 0.95V to 3.6V
  • Vref B Range: 1.65V to 5.5V
  • Operating Temperature: -40°C to +85°C
  • Package Type: TSSOP-14

Applications of LSF0204PWR Voltage Level Translator SMD IC

  • Mixed-voltage system interfacing
  • I²C and SPI bus level translation
  • Portable electronics and consumer devices
  • Industrial and automotive control units

    Package Includes

          1 x LSF0204PWR Voltage Level Translator SMD IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
