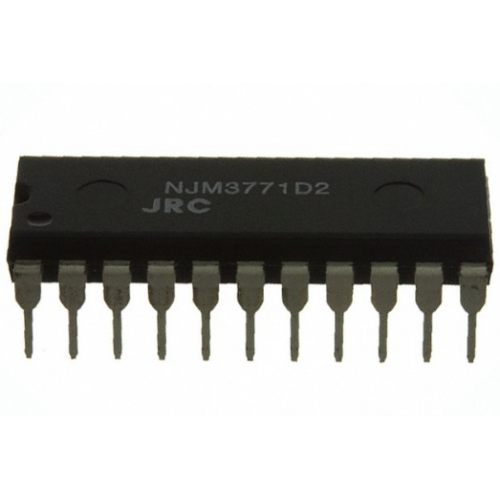

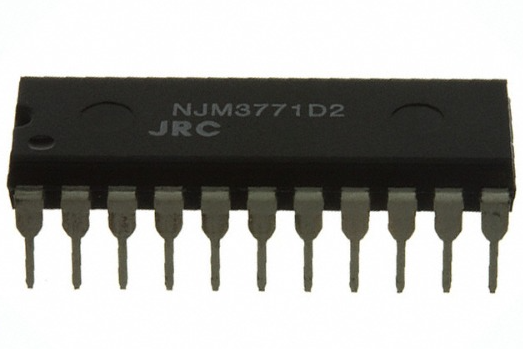

NJM3771D2 Bipolar Motor Driver DIP IC

NJM3771D2 Bipolar Motor Driver IC for Stepper and DC Motors

NJM3771D2 Bipolar Motor Driver IC features dual full-bridge, current control, and thermal protection for efficient motor driving.

The NJM3771D2 Bipolar Motor Driver IC is designed for driving bipolar stepper motors and DC motors efficiently. With a dual full-bridge configuration, this IC supports smooth motor operation while ensuring built-in current regulation and thermal protection for safe performance. Its standard DIP-16 package allows for easy integration into various applications, including robotics and CNC machines.

This versatile motor driver IC operates with a voltage range of 10V to 45V and can handle output currents up to 650mA per channel. The NJM3771D2 is perfect for embedded projects, providing reliable control for small DC motors and is optimized for mechatronic systems. Discover how this component can enhance your motor control systems today.

For Indian customers, the NJM3771D2 Bipolar Motor Driver IC offers a practical solution for automation projects. Available at our local shop in Nashik or through convenient online ordering, it is an essential part for any serious electronics enthusiast.

Explore the reliable NJM3771D2 Bipolar Motor Driver available at DNA Solutions. This essential component fits various motor driver applications. Check other Motor Driver that we have in stock.

If you are searching for specific electronic components, contact us. We can help you find parts like Hongfa Relay, Diode, Inductor, Connectors, Sensor Module, and Super Capacitor. We offer retail and bulk support, and can import if needed. Contact Us.

Features of NJM3771D2 Bipolar Motor Driver IC

• Dual full-bridge configuration
• Built-in current regulation
• Thermal shutdown protection
• Low saturation voltage outputs
• Standard DIP-16 package

Specification of NJM3771D2 Bipolar Motor Driver IC

• Operating Voltage: 10V to 45V
• Output Current: Up to 650mA per channel
• Package Type: DIP-16
• Control Type: PWM chopper current control
• Protection: Thermal shutdown

Applications of NJM3771D2 Bipolar Motor Driver IC

• Driving bipolar stepper motors
• Controlling small DC motors
• Robotics and automation systems
• Mechatronic systems
• CNC controllers

Package Includes

• 1 X NJM3771D2 Bipolar Motor Driver DIP IC
