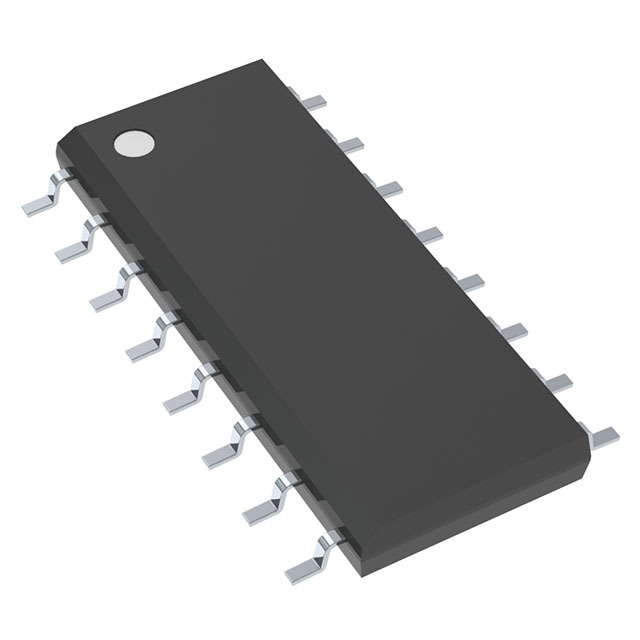

SN74LS138DR SOIC-16 Multiplexers & Demultiplexers 3-line to 8-line Decoder IC

SN74LS138DR 3-to-8 Line Decoder/Demultiplexer

SN74LS138DR 16 SMD IC for high-speed memory decoding with low propagation delay and 3-to-8 line output.

The SN74LS138DR 3-to-8 Line Decoder/Demultiplexer is designed for high-performance memory decoding. It features a low propagation delay, making it ideal for high-speed applications. This device can convert 3 binary inputs into 8 mutually exclusive outputs, ensuring efficient data routing. The SN74LS138DR is perfect for systems that require quick response times, minimizing system decoding effects.

With three enable inputs, the SN74LS138DR simplifies cascading and data reception. Its Schottky-clamped design enhances performance in memory systems, allowing for operation with minimal delay. This decoder is essential for projects requiring fast data transmission and efficient memory management.

Engineered for reliability, the SN74LS138DR is suitable for various applications, including memory systems and data routing setups. Experience the benefits of high-speed operation with this versatile decoder. Explore how the SN74LS138DR can improve your electronic designs today.

Explore the reliable performance of the 7400 Series IC's. At DNA, we offer the SN74LS138DR and various other products in the 7400 Series. Enhance your projects with high-speed memory decoding solutions. Check other "7400 Series IC's" that we have in stock.

If you're searching for specific components, reach out to us. We can help you find parts like Digital ICs, Microcontrollers, and more. We also offer import services for hard-to-find items. Contact Us.

Features of SN74LS138DR 3-to-8 Line Decoder/Demultiplexer

• Designed for high-speed memory decoding
• 3 enable inputs for easy cascading
• Schottky-clamped for improved performance
• 3-to-8 line output for efficient data routing
• Low propagation delay for fast operation

Specification of SN74LS138DR 3-to-8 Line Decoder/Demultiplexer

• Function: 3-to-8 line decoder/demultiplexer
• Number of Inputs: 3 (A, B, C)
• Number of Outputs: 8 (Y0 to Y7)
• Output Type: Open-collector, active low
• Propagation Delay: Typical 21 ns

Applications of SN74LS138DR 3-to-8 Line Decoder/Demultiplexer

• High-speed memory decoding
• Data routing applications
• Efficient digital communication systems
• Memory management in electronics
• Fast data transmission setups

Package Includes

• 1 X SN74LS138DR 3-to-8 Line Decoder/Demultiplexer
