Product Images are shown for illustrative purposes only and may differ from actual product.

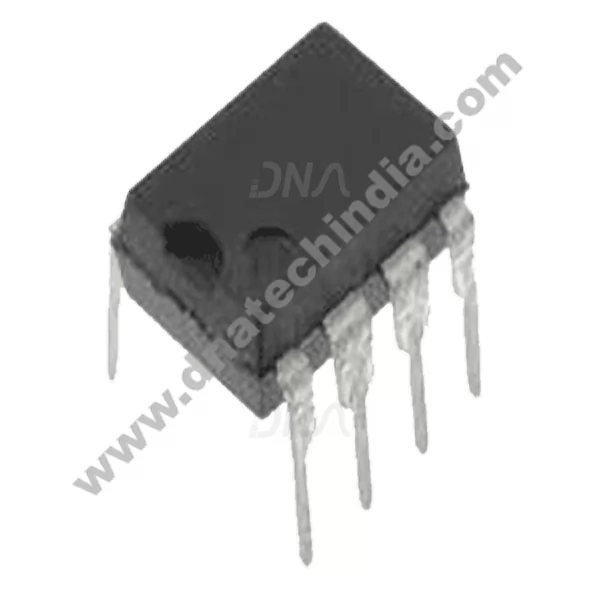

NE567 Tone Decoder / PLL

Write a review | 0 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-02-06
SKU: 129 | DAA293

Rs. 23.60 (inc GST)
Rs.20.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

LM567 Tone Decoder/PLL

The LM567/NE567/SE567 is general purpose tone decoders designed to provide a saturated transistor switch to ground when an input signal is present within the pass band.

The circuit consists of an I and Q detector driven by a voltage controlled oscillator which determines the center frequency of the decoder. External components are used to independently set center frequency, bandwidth and output delay.

Features of LM567

20 to 1 frequency range with an external resistor
Logic compatible output with 100 mA current sinking capability
Bandwidth adjustable from 0 to 14%
High rejection of out of band signals and noise
Immunity to false signals
Highly stable center frequency
Center frequency adjustable from 0.01 Hz to 500 kHz
Applications of LM567

Touch tone decoding
Precision oscillator
Frequency monitoring and control
Wide band FSK demodulation
Ultrasonic controls
Carrier current remote controls
Communications paging decoders

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
