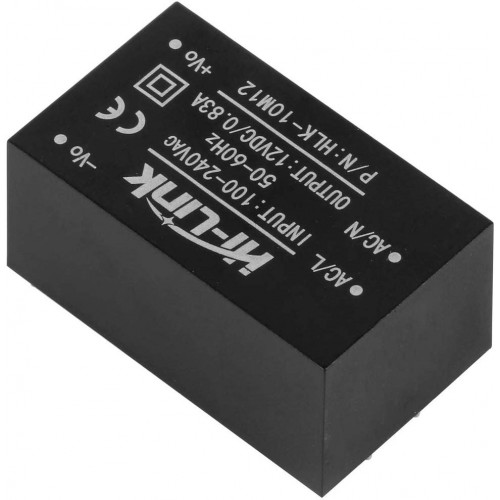

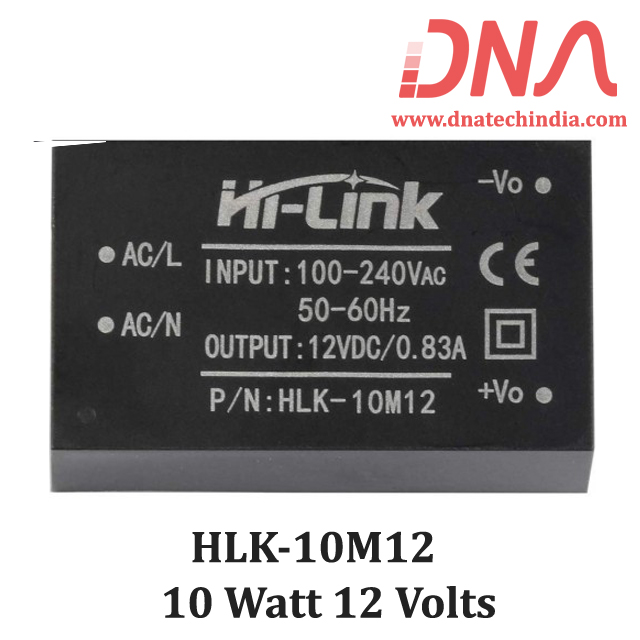

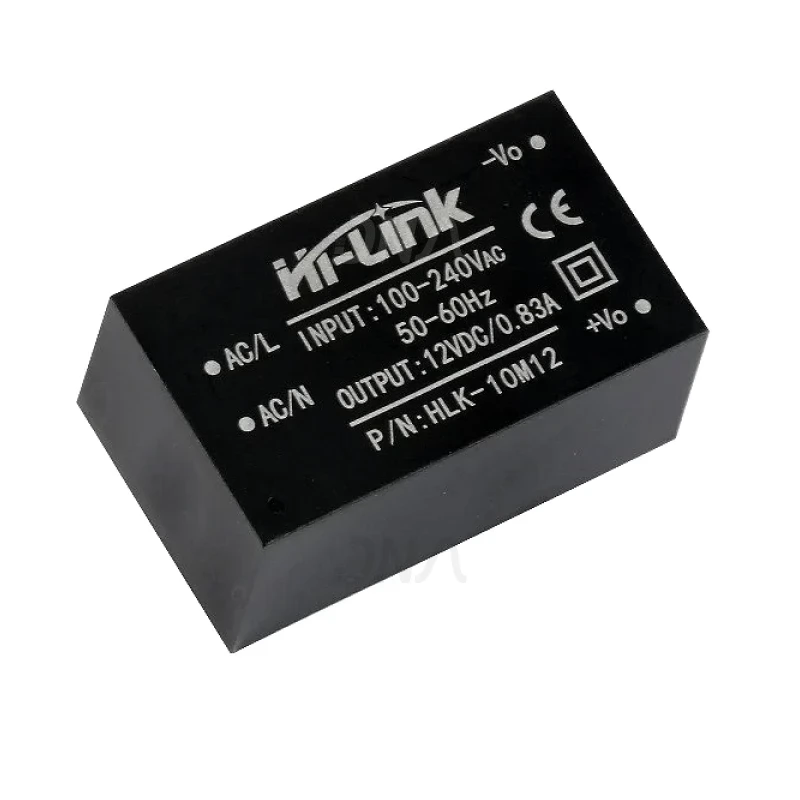

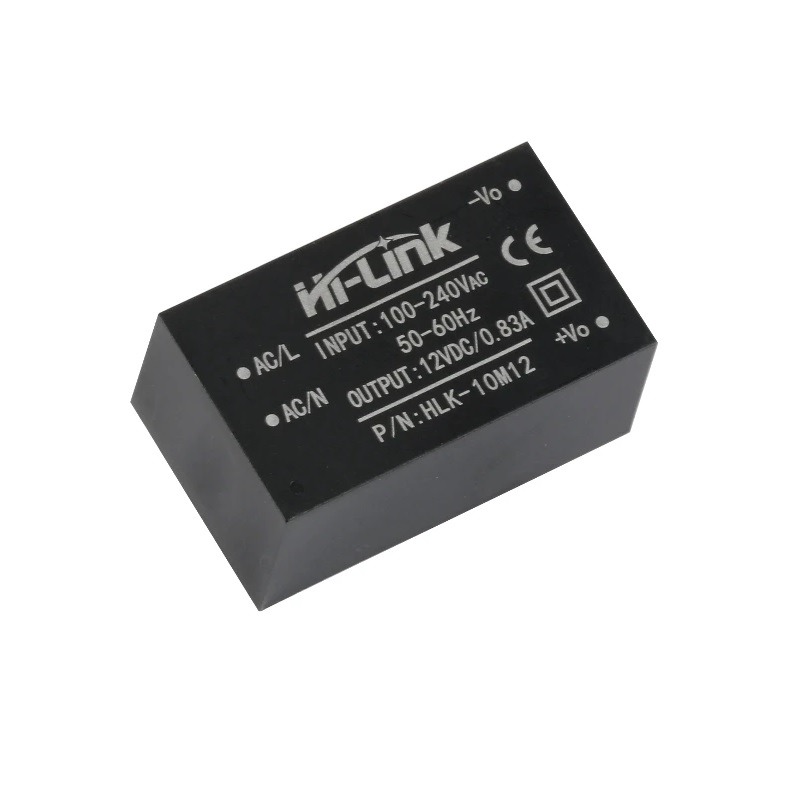

HLK-10M12 Power Supply Module

HLK-10M12 12 Volts, 10 watt PCB Mounting isolated Power Supply Module

HLK-10M12 12 volts 10 watt compact plastic enclosed isolated Power Supply Module. HLK-10M05 from Hilink is a isolated switching step-down power supply module and can supply 5 volts DC from 120 Volts to 230 Volts AC input and has a power rating of 10 watts.

This compact size power module makes it perfect to use in places where size is a constraint. HLK AC to DC power supply modules is a compact PCB mountable plastic enclosed power supply module. HLK-10M12  Power Supply Module replaces lots of parts from the traditional power supply like diodes, voltage regulator, transformer.

HLK Power Supply modules are perfect solutions if you want your power supply on PCB. Hi-link AC to DC Power supply modules are widely used in various applications like smart homes, communication equipment, automation and control and various other industries.

The 10 Watt ultra-small series power supply module is a small volume, high efficiency power module designed for customers by Hi-Link. It has the advantage of global input voltage range, low temperature rise, low power consumption, high efficiency, high reliability, high security isolation etc.

DNA Solutions has various ratings of Hi-Link power suppy modules. Check our complete list of Hi-Link Power supply Modules.

DETAIL of HLK-10M012 Power Supply Module

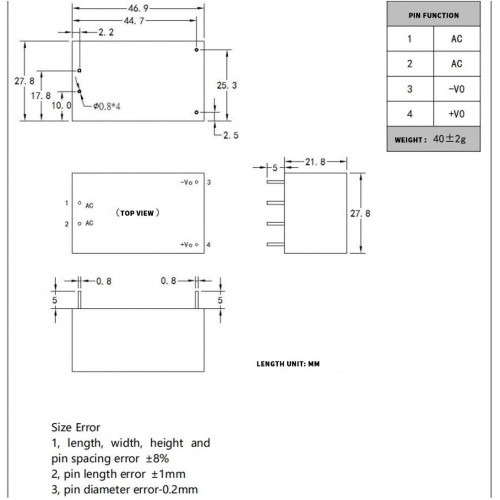

• Size : 46.9*27.8*21.8

• Output Power : 10 watt

• Output Voltage : 12 volt

• Output Current : 830 mA

Characteristics of HLK-10M12 AC to DC Power Supply Module

• Ultra-thin, ultra-small, minimum volume in the industry

• Universal input voltage (90~245Vac)

• Low power consumption, environmental protection, no-load loss <0.1W

• Low ripple and low noise

• Good output short circuit and over-current protection and self-recovery

• High efficiency, high power density

Safety and electromagnetic compatibility

• The input design adopts UL certification 1 A insurance.

• The PCB board is made of double-sided copper clad foil, and the material fire resistance grade is 94-V0 grade.

• Safety standards comply with UL1012, EN60950, UL60950

• Insulation voltage: I/P-O/P : 2500 Vac

• Insulation resistance : I/P-O/P>100 M Ohms/500Vdc 25? 70% RH

• Conduction and radiation conformance to EN55011, EN55022 (CISPR22)

• Electrostatic discharge : IEC / EN 61000-4-2 level 4 8 kV/15 kV

• Radio frequency radiation immunity : IEC / EN 61000-4-3
