ATMEGA8L

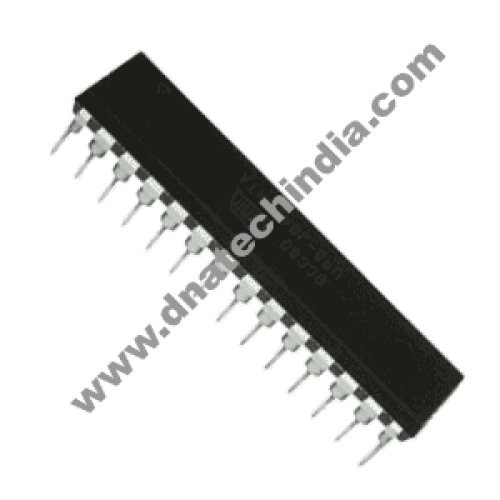

ATMEGA8L-8PU DIL28 ATMELMicrocontroller AVR, 8kByte ISP FLASH memory, 1kByte RAM, 512Byte EEPROM, 2x8bit + 1x16bit counter/timer, 3xPWM, 6x10bit A/D, 2x8bit A/D, USART, SPI, Internal oscillator, DIL28 (narrow), Industry temp range, Low Voltage 2,7V- 5,5V, PbFree

The ATmega8 is a low-power CMOS 8-bit microcontroller based on the AVR RISC architecture.By executing powerful instructions in a single clock cycle, the ATmega8 achieves throughputs approaching 1 MIPS per MHz, allowing the system designed to optimize power consumption versus processing speed.

Features :-

• High-performance, Low-power AVR® 8-bit Microcontroller
• Advanced RISC Architecture
– 130 Powerful Instructions – Most Single-clock Cycle Execution
– 32 x 8 General Purpose Working Registers
– Fully Static Operation
– Up to 16 MIPS Throughput at 16 MHz
– On-chip 2-cycle Multiplier
• High Endurance Non-volatile Memory segments
– 8K Bytes of In-System Self-programmable Flash program memory
– 512 Bytes EEPROM
– 1K Byte Internal SRAM
– Write/Erase Cycles : 10,000 Flash/100,000 EEPROM
– Data retention : 20 years at 85°C/100 years at 25°C(1)
– Optional Boot Code Section with Independent Lock Bits In-System Programming by On- chip Boot Program True Read-While-Write Operation
– Programming Lock for Software Security
• Peripheral Features
– Two 8-bit Timer/Counters with Separate Prescaler, one Compare Mode
– One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode
– Real Time Counter with Separate Oscillator
– Three PWM Channels
– 8-channel ADC in TQFP and QFN/MLF package Eight Channels 10-bit Accuracy
– 6-channel ADC in PDIP package Six Channels 10-bit Accuracy
– Byte-oriented Two-wire Serial Interface
– Programmable Serial USART
– Master/Slave SPI Serial Interface
– Programmable Watchdog Timer with Separate On-chip Oscillator
– On-chip Analog Comparator
• Special Microcontroller Features
– Power-on Reset and Programmable Brown-out Detection
– Internal Calibrated RC Oscillator
– External and Internal Interrupt Sources
– Five Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, and Standby
• I/O and Packages
– 23 Programmable I/O Lines
– 28-lead PDIP, 32-lead TQFP, and 32-pad QFN/MLF
• Operating Voltages
– 2.7 - 5.5V (ATmega8L)
– 4.5 - 5.5V (ATmega8)
• Speed Grades
– 0 - 8 MHz (ATmega8L)
– 0 - 16 MHz (ATmega8)
• Power Consumption at 4 Mhz, 3V, 25°C
– Active : 3.6 mA
– Idle Mode : 1.0 mA
– Power-down Mode : 0.5 µA
