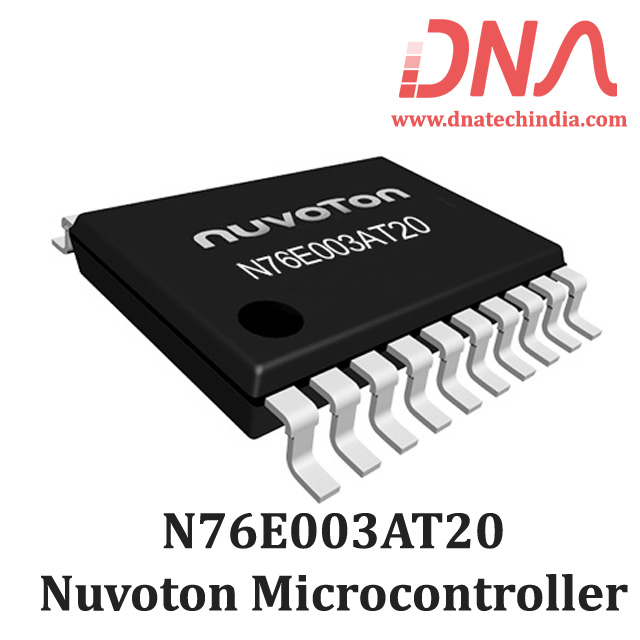

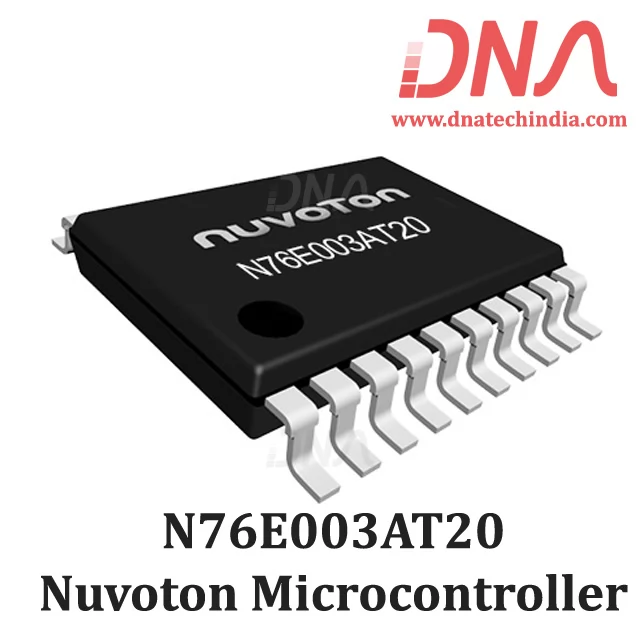

• Nuvoton N76E003AT20 Microcontroller

Product Images are shown for illustrative purposes only and may differ from actual product.

Nuvoton N76E003AT20 Microcontroller

  • Stock: 1997
  • Brand: Nuvoton
  • SKU: 2826 | DAE473
  • Rs. 106.20 (inc GST)
    Rs.90.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

Nuvoton N76E003AT20 SMD Microcontroller

Nuvoton N76E003AT20 a 1T-8051 based series SMD microcontroller

Nuvoton's N76E003AT20 – a 1T-8051 based series MCU, offers 18 KB Flash ROM, configurable Data Flash and 1 KB SRAM . It supports wide operating voltage of 2.4V to 5.5V , temperature range of - 40 ℃ to 105 ℃ , and high noise immunity of 7 kV ESD and 4 kV EFT.

The N76E003AT20 microcontroller provides up to 18 I/O pins under 20 pin package and rich peripherals including two UART s, SPI , I²C , 6-ch PWM output, wake-up function, and Brown-out detector. The competitive features includes a high precision <2 % deviation 16 MHz Internal RC oscillator, and a high resolution 12-bit 8 channel ADC . Nuvoton's N76E003AT20 controller supports small form factor packages TSSOP20 ( 4mm x 6.5mm ) and QFN20 ( 3mm x 3mm ) for easy board design.

DNA Solution has various types of Nuvoton Micorocntrollers in stock. Check our complete collection of Nuvoton Microcontrollers

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Key Features of Nuvoton N76E003AT20 Microcontroller

Core

  - 1T 8051 processor

  - Max frequency up to16 MHz

  - Wide operating voltage: 2.4V to 5.5V

  - Temperature range: - 40 ℃ to 105 ℃

Memory

  - 18 KB  of Flash memory

  - 1 KB of SRAM

  - Supports configurable Data Flash

  - Supports program update by:

ISP ( In-System Programming )

ICP ( In-Circuit Programming )

IAP ( In-Application Programming )

PWM

  - Up to 6-ch PWM

  - Programmable dead-zone generator

ADC

  - 12-bit 8-ch ADC

  - Runs up to 500 kSPS

Connectivity

  - Two UART s up to 115200 bps

  - One SPI up to 8 MHz

  - One I²C up to 400 kHz

Clock Control

  - 2 % deviation16 MHz Internal RC oscillator

  - 10 kHz Internal RC oscillator

Related Links

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
