Product Images are shown for illustrative purposes only and may differ from actual product.

LM7905


Write a review | 0 reviews

  • Stock: 15

    Availability: InStock priceValidUntil: 2026-05-01

  • SKU: 88 | DAA087

Availability: InStock priceValidUntil: 2026-05-01

  • Rs. 14.34 (inc GST)
    Rs.12.15 + GST

    Qty :

  • Quantity Pricing (inc GST)

    5 + 15.05 10 + 14.75 20 + 14.16 30 + 12.98

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

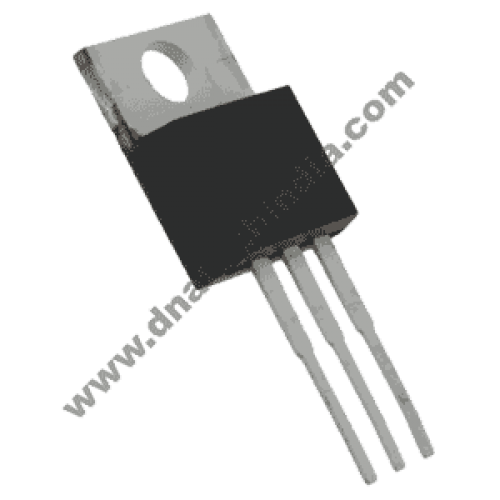

LM7905 Fixed Negative Voltage Regulator

LM7905: Negative voltage regulator providing -5V output with 1.5A current capacity and thermal protection.

The LM7905 Fixed Negative Voltage Regulator is essential for applications requiring a stable negative voltage output. It delivers a fixed output of -5V and can provide up to 1.5A of current. This regulator is designed with internal current limiting and thermal shutdown features, ensuring protection against overload conditions. Its low ground pin current allows for voltage boosting with a simple resistor divider setup. The LM7905 series is ideal for projects needing reliable negative voltage regulation in various electronic circuits.

Engineered for efficiency, the LM7905 Fixed Negative Voltage Regulator achieves high ripple rejection and maintains a low quiescent current drain. This ensures stable performance even under varying load conditions. With a maximum output voltage tolerance of 4%, it is suitable for sensitive applications that demand precision. The TO-220 packaging ensures ease of mounting and heat dissipation, making it a practical choice for both hobbyists and professionals.

Explore the benefits of using the LM7905 in your next project. This voltage regulator is perfect for powering operational amplifiers, sensors, and analog circuits that require a negative voltage supply. Its reliability and simplicity make it a staple in electronic design.

At DNA, we offer the LM7905 Fixed Negative Voltage Regulator from trusted manufacturers. Explore our range of Voltage Regulators to find the right component for your projects. Check other Voltage Regulators that we have in stock.

If you need additional electronic components, DNA is here to help. From Development Boards to Diodes and Connectors, we support both retail and bulk orders. If you cannot find specific parts, we can import them for you. Contact Us.

Features of LM7905 Fixed Negative Voltage Regulator

  • Thermal protection
  • Short circuit protection
  • High ripple rejection
  • 1.5A output current
  • 4% voltage tolerance

Specification of LM7905 Fixed Negative Voltage Regulator

  • Output voltage: -5V
  • Output current: 1.5A
  • Package type: TO-220
  • Ground pin current: Low
  • Tolerance: 4%

Applications of LM7905 Fixed Negative Voltage Regulator

  • Operational amplifiers
  • Analog circuits
  • Power supply for sensors
  • Negative voltage supply
  • Voltage regulation in electronics

Package Includes

  • 1 X LM7905 Fixed Negative Voltage Regulator
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
