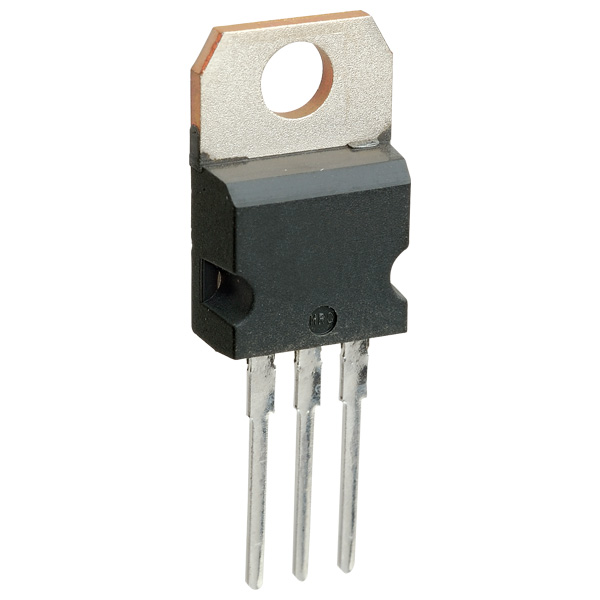

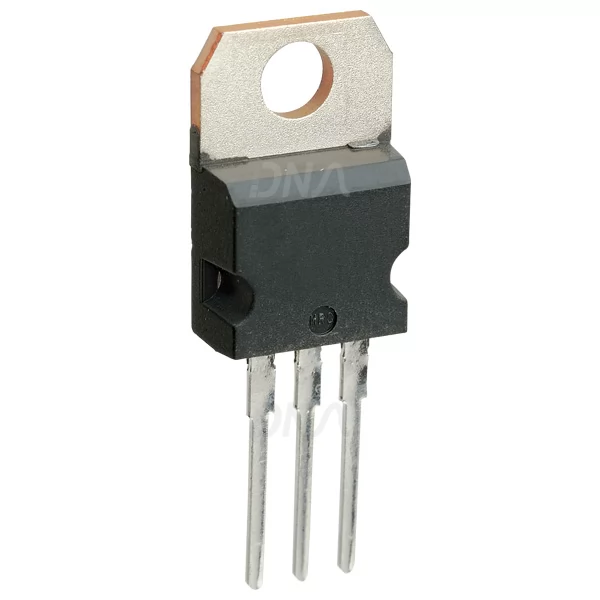

LM7824 Voltage Regulator

Write a review | 1 reviews

Stock: 52
Availability: InStock priceValidUntil: 2026-06-27
SKU: 786 | DAA099

Rs. 18.88 (inc GST)
Rs.16.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

LM7824 Voltage Regulator

The LM78XX series of three terminal positive regulators are available in the TO-220 package and with several fixed output voltages, making them useful in a wide range of applications.

Each type employs internal current limiting, thermal shut down and safe operating area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents. LM7824 voltage Regulator has output of +24V DC and 1Amp current.

Features of LM7824

Output Current up to 1A
Output Voltages of 24V
Thermal Overload Protection
Short Circuit Protection
Output Transistor Safe Operating Area Protection
Thermal Resistance Junction-Cases (TO-220) RJC : 5 0C/W
Thermal Resistance Junction-Air (TO-220) RJA : 65 0C/W
Operating Temperature Range TOPR : 0-150 0C
Storage Temperature Range TSTG : -65-150 0C

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
