  • MT3608 DC to DC Step up Boost IC

Product Images are shown for illustrative purposes only and may differ from actual product.

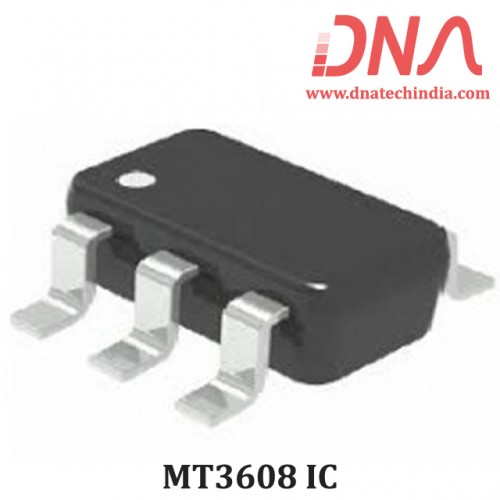

MT3608 DC to DC Step up Boost IC


Write a review | 0 reviews

  • Stock: 500
  • SKU: 2427 | DAC257
  • Rs. 27.14 (inc GST)
    Rs.23.00 + GST

    Qty :

  • Quantity Pricing (inc GST)

    10 + 25.02 25 + 23.01 50 + 21.12

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

MT3608 IC

MT3608 IC Step up DC to DC Boost IC (B688v)

The MT3608 IC is a constant frequency, 6-pin SOT23 current mode step-up converter intended for small, low power applications. The MT3608 switches at 1.2MHz and allows the use of tiny, low cost capacitors and inductors 2mm or less in height. Internal soft-start results in small inrush current and extends battery life. The MT3608 features automatic shifting to pulse frequency modulation mode at light loads. The MT3608 includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload. The MT3608 is available in a small 6-pin SOT-23 package.

B6288V is printed on the IC and is used to boost DC voltage. MT3608 can boost 2 Volts to 24 Volts input voltage to output voltage of 5 Volts to 28 Volts the output voltage is adjustable.

We have various types of Load Cells, Force Sensor, Flex Sensor and Pressure Sensor. Check our complete collection of Weigh Sensor and Load cell.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of MT3608 DC to DC Boost IC

  • Integrated 80mΩ Power MOSFET
  • 2 Volts to 24 Volts Input Voltage
  • 1.2MHz Fixed Switching Frequency
  • Internal 4A Switch Current Limit
  • Adjustable Output Voltage
  • Internal Compensation
  • Up to 28 Volts Output Voltage
  • Automatic Pulse Frequency Modulation Mode at Light Loads
  • up to 97% Efficiency
  • Available in a 6-Pin SOT23-6 Package

Applications of MT3608 DC to DC boost IC

  • Battery-Powered Equipment
  • Set-Top Boxed
  • LCD Bais Supply
  • DSL and Cable Modems and Routers
  • Networking cards powered from PCI or PCI express slots

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
