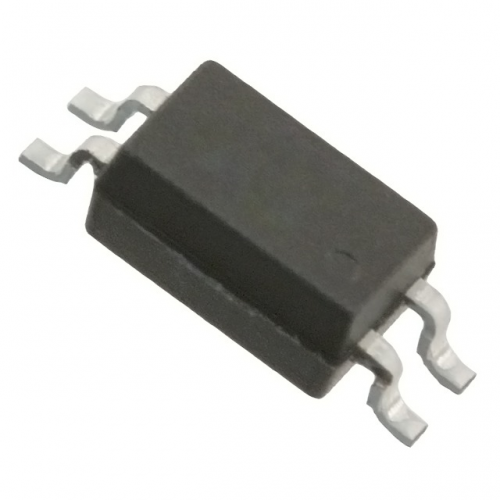

Product Images are shown for illustrative purposes only and may differ from actual product.
ACPL-214-500E Phototransistor Optocoupler SMD IC
- Stock: Out Of Stock NotInStock
- SKU: 9779 | DAI523
-
Rs.
73.65 (inc GST)
Rs.62.41 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
ACPL-214-500E Phototransistor Optocoupler SMD IC
ACPL-214-500E Phototransistor Optocoupler SMD IC
The ACPL-214-500E is a high-performance phototransistor optocoupler designed to provide electrical isolation between input and output circuits. It integrates a gallium arsenide infrared LED and a silicon phototransistor housed in a compact dual-in-line package (DIP-4). This optocoupler is widely used for signal isolation and level shifting, ensuring signal integrity and protecting sensitive components from high-voltage transients.
DNA solutions, Nashik has various types of Optocoupler IC's. Check out our complete collection of Optocoupler IC's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of ACPL-214-500E Phototransistor Optocoupler SMD IC
- High current transfer ratio (CTR) range: 50% to 600% at IF = 5 mA, VCE = 5 V
- High isolation voltage between input and output: 5000 Vrms
- Compact 4-pin DIP package
- Low input current requirements
- Wide operating temperature range: –55°C to +100°C
- Available in lead-free and RoHS-compliant versions
Specifications of ACPL-214-500E Phototransistor Optocoupler SMD IC
- Input type: Infrared LED
- Mounting Style: SMD/SMT
- Output type: Phototransistor
- Isolation voltage: 5000 Vrms
- Forward current: 60 mA
Applications of ACPL-214-500E Phototransistor Optocoupler SMD IC
- Power supply feedback circuits
- AC mains detection
- Switching power supplies
- Industrial control systems
Package Includes
1 x ACPL-214-500E Phototransistor Optocoupler SMD IC
