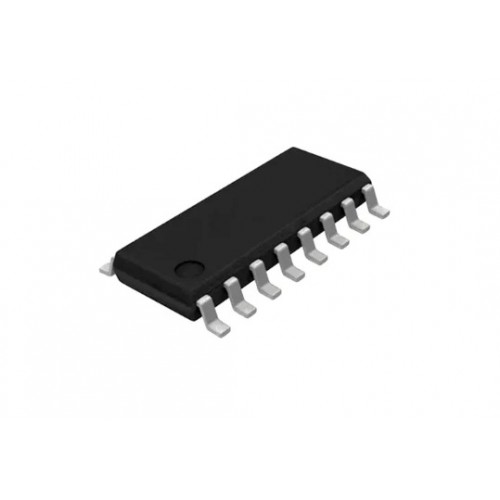

Product Images are shown for illustrative purposes only and may differ from actual product.

TLP290 4 SMD SOIC 16 Toshiba Transistor Output Optocoupler

  • Stock: 5

    Availability: InStock priceValidUntil: 2026-12-18

  • SKU: 7751 | DAH498

Availability: InStock priceValidUntil: 2026-12-18

  • Rs. 135.41 (inc GST)
    Rs.114.75 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Toshiba TLP290-4 Transistor Output Optocoupler

TLP290-4 Optocoupler with 80V voltage, 50% current transfer ratio, and 2500 Vrms isolation.

The Toshiba TLP290-4 Transistor Output Optocoupler is designed for high-density applications. This component features a photo transistor optically coupled with an infrared emitting diode, ensuring reliable signal isolation. With a wide operating temperature range of -55°C to 110°C, the TLP290-4 is ideal for programmable controllers and hybrid ICs. Its small SO16 package makes it suitable for compact designs in electronics.
This optocoupler boasts an impressive collector-emitter voltage of 80V and a current transfer ratio of 50%, ensuring efficient signal transmission. The Toshiba TLP290-4 is perfect for microcontroller interfacing, switching power supplies, and PLC systems. Its guaranteed performance over a broad temperature range enhances its reliability in various applications.
For those seeking robust performance in signal isolation, the TLP290-4 Transistor Output Optocoupler is an excellent choice. It also features an isolation voltage of 2500 Vrms, making it suitable for motor drive circuits and other critical applications.
Explore the range of OptoCouplers & OptoIsolators at DNA. The Toshiba brand offers reliable solutions for your electronic needs. Discover our collection and see how these components can enhance your projects. Check other 'OptoCouplers & OptoIsolators' that we have in stock.
If you are searching for specific electronic components, reach out to us at DNA. We can import parts not currently in stock and support both retail and bulk purchases. Explore related items like Programmers, Capacitors, Crystals, Digital ICs, DC to DC Converter Modules, and Microcontrollers. Contact Us

Features of Toshiba TLP290-4 Transistor Output Optocoupler

  • Compact SO16 package
  • Wide operating temperature range
  • High isolation voltage
  • Reliable signal isolation
  • Efficient current transfer ratio

Specification of Toshiba TLP290-4 Transistor Output Optocoupler

  • Model: TLP290-4
  • Case/Package: SMD-16
  • Input Voltage: 1.2V at 20mA
  • Forward current (IF): Maximum 50mA
  • Operating temperature: -55°C to 110°C

Applications of Toshiba TLP290-4 Transistor Output Optocoupler

  • Signal Isolation
  • Microcontroller Interfacing
  • Switching Power Supplies
  • PLC Systems
  • Motor Drive Circuits

Package Includes

  • 1 X Toshiba TLP290-4 Transistor Output Optocoupler
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
