NE566 Function generator


Write a review | 0 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-03-06

  • SKU: 389 | DAA435

Availability: NotInStock priceValidUntil: 2026-03-06

  • Rs. 114.46 (inc GST)
    Rs.97.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

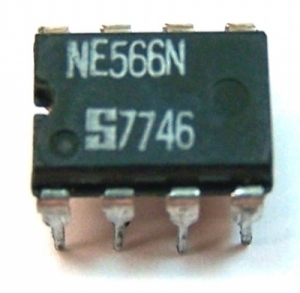

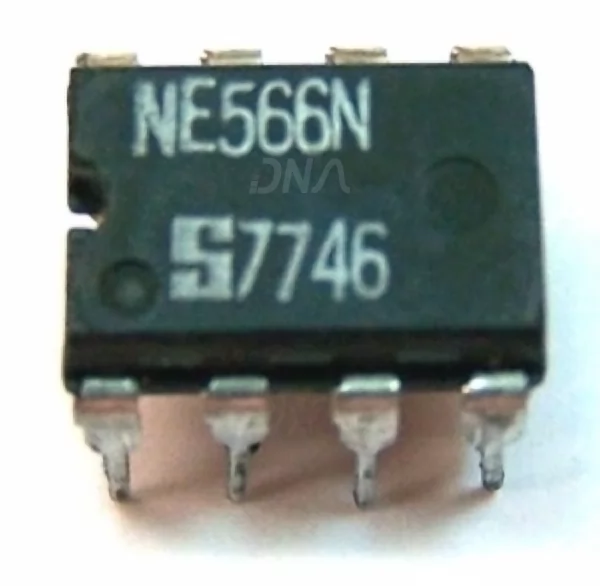

NE566 Function generator

The NE/SE566 Function Generator is a voltage-controlled oscillator of exceptional linearity with buffered square wave and triangle wave outputs.

The frequency of oscillation is determined by an external resistor and capacitor and the voltage applied to the control terminal.
The oscillator can be programmed over a ten-to-one frequency range by proper selection of an external resistance and modulated over a ten-to-one range by the control voltage, with exceptional linearity.

FEATURES of NE566

  • Wide range of operating voltage (up to 24V; single or dual)
  • High linearity of modulation
  • Highly stable center frequency (200ppm/°C typical)
  • Highly linear triangle wave output
  • Frequency programming by means of a resistor or capacitor, voltage or current
  • Frequency adjustable over 10-to-1 range with same capacitor

APPLICATIONS of NE566

  • Tone generators
  • Frequency shift keying
  • FM modulators
  • Clock generators
  • Signal generators
  • Function generators
