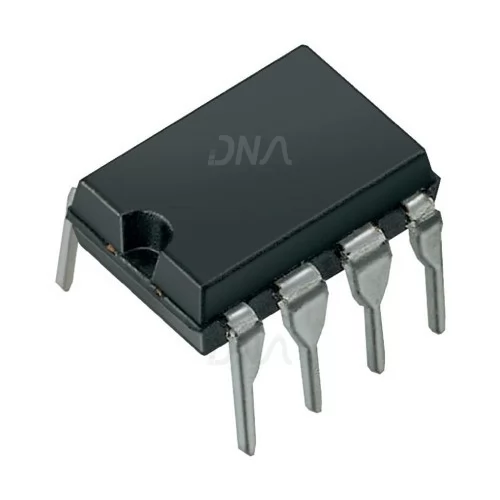

Product Images are shown for illustrative purposes only and may differ from actual product.

AD584 Precision Voltage Reference

Write a review | 0 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-07-04
SKU: 970 | DAA005

Rs. 470.82 (inc GST)
Rs.399.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

AD584 Precision Voltage Reference

The AD584 is recommended for use as a reference for 8-, 10-, or 12-bit digital-to-analog converters (DACs) that require an external precision reference.

The AD584 is an 8-terminal precision voltage reference offering pin programmable selection of four popular output voltages: 10.000 V, 7.500 V, 5.000 V and 2.500 V. Other output voltages, above, below, or between the four standard outputs, are available by the addition of external resistors.

The input voltage can vary between 4.5 V and 30 V. Laser wafer trimming (LWT) is used to adjust the pin programmable output levels and temperature coefficients, resulting in the most flexible high precision voltage reference available in monolithic form.

In addition to the programmable output voltages, the AD584 offers a unique strobe terminal that permits the device to be turned on or off. When the AD584 is used as a power supply reference, the supply can be switched off with a single, low power signal. In the off state, the current drained by the AD584 is reduced to approximately 100 μA. In the on state, the total supply current is typically 750 μA, including the output buffer amplifier.

In addition, the device is ideal for analog-to-digital converters (ADCs) of up to 14-bit accuracy, either successive approximation or integrating designs, and in general, it can offer better performance than that provided by standard self-contained references.

Features of AD584

Four programmable output voltages

10.000 V, 7.500 V, 5.000 V, and 2.500 V

Laser-trimmed to high accuracies
No external components required
Trimmed temperature coefficient

15 ppm/°C maximum, 0°C to 70°C (AD584K)

15 ppm/°C maximum, −55°C to +125°C (AD584T)

Zero output strobe terminal provided
2-terminal negative reference : capability (5 V and above)
Output sources or sinks current
Low quiescent current : 1.0 mA maximum
10 mA current output capability
MIL-STD-883 compliant versions available
