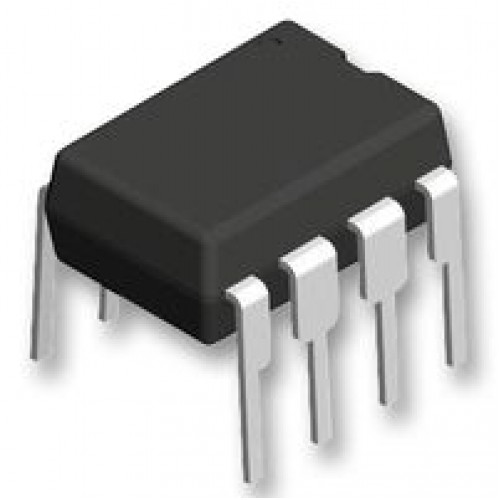

Product Images are shown for illustrative purposes only and may differ from actual product.

AD654 Voltage to Frequency Converter

  • Stock: 4

    Availability: InStock priceValidUntil: 2026-12-14

  • Brand: Analog Devices
  • SKU: 971 | DAA011

Availability: InStock priceValidUntil: 2026-12-14

  • Rs. 457.84 (inc GST)
    Rs.388.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

AD654 Voltage-to-Frequency Converter

AD654 V/F Converter + High Performance + FS frequency up to 500 kHz + Low power consumption at 2.0 mA.

The AD654 Voltage-to-Frequency Converter is a powerful device designed for accurate signal conversion. It converts an input voltage of up to ±30 V into a frequency output, with a maximum full-scale frequency of 500 kHz. This device features a low drift input amplifier, making it ideal for small signals from thermocouples or strain gauges. The AD654 operates efficiently with a power supply range of 5 V to 36 V while consuming only 2.0 mA of quiescent current.
Engineered for versatility, the AD654 Voltage-to-Frequency Converter provides a square-wave output capable of driving multiple TTL loads. It boasts a high input resistance of 250 MW and a minimal linearity error of just 0.03% at 250 kHz. The temperature coefficient is also impressive, typically at ±50 ppm/°C, ensuring stability across varying conditions.
Applications for the AD654 include data acquisition systems, industrial process control, and instrumentation. Its easy setup, requiring only a single RC network, makes it suitable for a wide range of electronic projects. Explore how the AD654 Voltage-to-Frequency Converter can enhance your measurements today.
Discover reliable solutions in the Voltage Regulators category at DNA. Explore the AD654 Voltage-to-Frequency Converter and see how it can meet your needs. Check other Voltage Regulators that we have in stock.
If you're searching for specific electronic components, DNA can help. We support retail and bulk orders, and we can import parts if they're not available. Explore related items like Sensors, Digital ICs, HMI Displays, IGBTs, Inductors, and Super Capacitors. Contact Us.

Features of AD654 Voltage-to-Frequency Converter

  • Low Cost
  • Single or Dual Supply, 5 V to 36 V
  • Full-Scale Frequency Up to 500 kHz
  • Minimum Number of External Components
  • High Input Impedance
  • Low Power Consumption
  • Low Offset Voltage

Specification of AD654 Voltage-to-Frequency Converter

  • Input Voltage Range: ±30 V
  • Max Frequency: 500 kHz
  • Quiescent Current: 2.0 mA
  • Input Impedance: 250 MW
  • Temperature Coefficient: ±50 ppm/°C

Applications of AD654 Voltage-to-Frequency Converter

  • Data Acquisition Systems
  • Industrial Process Control
  • Instrumentation
  • Signal Processing
  • Measurement Systems

Related Links for AD654 Voltage-to-Frequency Converter

Package Includes

  • 1 X AD654 Voltage-to-Frequency Converter
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
