  • TC4420 High Speed MOSFET Driver

Product Images are shown for illustrative purposes only and may differ from actual product.

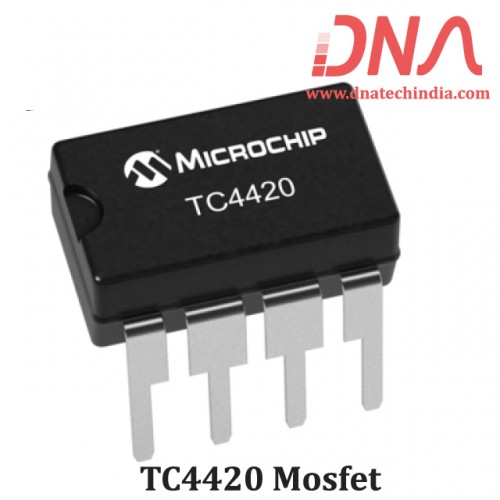

TC4420 High Speed MOSFET Driver

  • Stock: Out Of Stock
  • SKU: 0658 | DAA026
  • Rs. 135.70 (inc GST)
    Rs.115.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

TC4420 High Speed MOSFET Driver

The TC4420/4429 are 6A (peak),single output MOSFET drivers.

The TC4429 is an inverting driver (pin-compatible with the TC429), while the TC4420 is a non-inverting driver. These drivers are fabricated in CMOS for lower power, more efficient operation versus bipolar drivers. Both devices have TTL-compatible inputs, which can be driven as high as VDD + 0.3V or as low as – 5V without upset or damage to the device. This eliminates the need for external level shifting circuitry and its associated cost and size. The output swing is rail-to-rail ensuring better drive voltage margin, especially during power up/power down sequencing. Propagational delay time is only 55nsec (typ.) and the output rise and fall times are only 25nsec (typ.) into 2500pF across the usable power supply range. Unlike other drivers, the TC4420/4429 are virtually latch-up proof. They replace three or more discrete components saving PCB area, parts and improving overall system reliability.

DNA Solutions has large collection of various types of MOSFET and IGBT's. Check our complete collection of MOSFET and IGBT.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of TC4420 High Speed MOSFET Driver

  • Latch-Up Protected Will Withstand >1.5A Reverse Output Current

  • Logic Input Will Withstand Negative Swing Up to 5V

  • Matched Rise and Fall Times : 25nsec

  • High Peak Output Current : 6A Peak

  • Wide Operating Range : 4.5V to 18V

  • High Capacitive Load Drive : 10,000pF

  • Short Delay Time : 55nsec Typ.

  • Logic High Input,Any Voltage : 2.4V to VDD

  • Low Supply Current With Logic "1"Input ...450 µA

  • Low Output Impedance : 2.5 ?

  • Output Voltage Swing to Within 25mV of Ground or VDD
