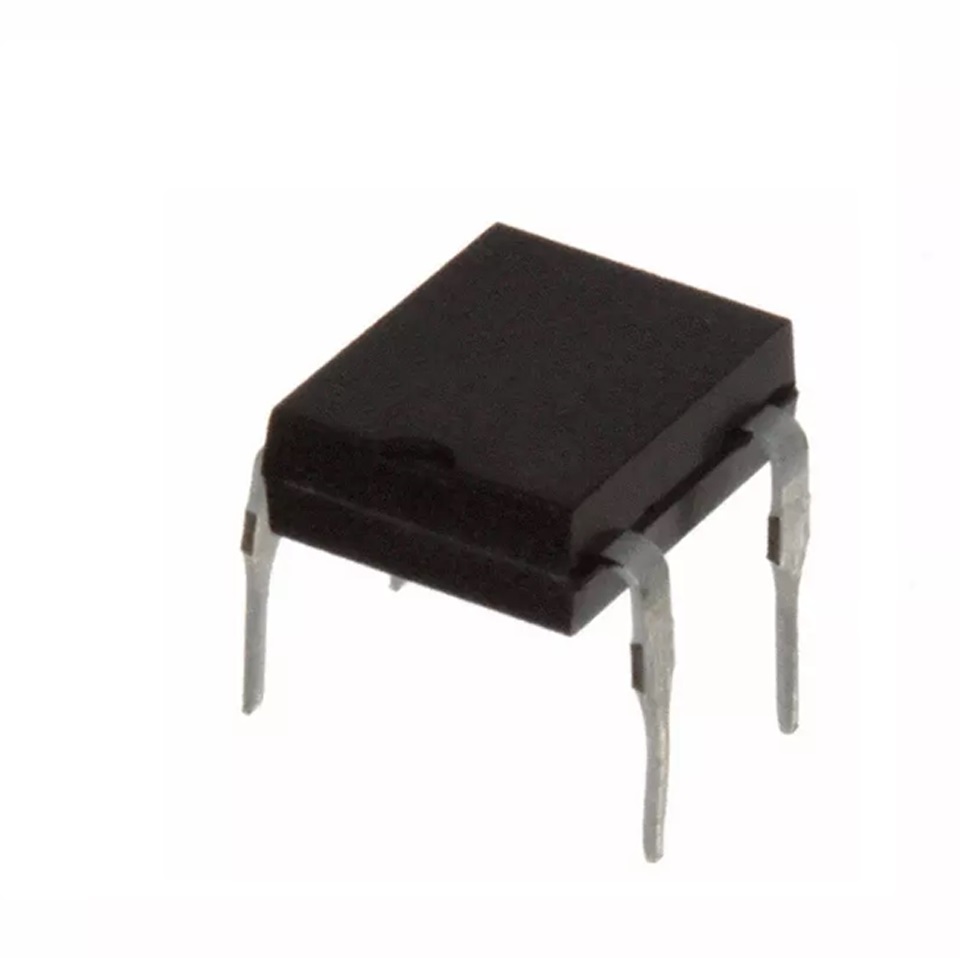

DB107 Bridge Rectifier

DB107 Bridge Rectifier - 1A Full Wave Rectifier

DB107 Bridge Rectifier for full wave conversion, 1.0A current rating, and 1000V peak reverse voltage.

The DB107 Bridge Rectifier is designed for reliable full wave rectification in various electronic applications. With a maximum current rating of 1.0A and a peak reverse voltage of 1000V, this bridge rectifier is suitable for power supply circuits and printed circuit boards. Its glass passivated chip junctions ensure high surge overload ratings, making it a dependable choice for your projects.

Featuring a compact structure and UL recognized components, the DB107 Bridge Rectifier facilitates easy integration into your designs. Its plastic package adheres to UL flammability classification 94V-0, ensuring safety and efficiency. With solderable tin-plated leads, installation is straightforward, allowing you to focus on your project without complications.

Ideal for a wide range of applications, the DB107 Bridge Rectifier offers versatility and robust performance. Whether you're working on industrial electronics or DIY projects, this rectifier meets your needs with ease. Explore the possibilities and enhance your electronic designs with this reliable component.

Discover the reliability of the DB107 Bridge Rectifier from DNA. This essential component in the Diodes & Transistors category ensures robust performance for your electronic projects. Check other "Diodes & Transistors" that we have in stock.

At DNA, we cater to all your electronic needs. If you can't find the parts you need, reach out to us. We can import components and support retail and bulk orders. Explore related items like Diodes, Sensor Modules, Development Boards, and more. Contact Us.

Features of DB107 Bridge Rectifier

• 1.0A maximum output current
• 1000V peak reverse voltage
• UL recognized component
• Compact and easy to mount
• Glass passivated junctions

Specification of DB107 Bridge Rectifier

• Maximum RMS Input Voltage VRMS=700 V
• Maximum DC Blocking Voltage VDC=1000 V
• Surge Overload Rating of 50A Peak
• Weight: 1.0 grams
• Polarity symbols marked on body

Applications of DB107 Bridge Rectifier

• Power supply circuits
• Industrial electronics
• DIY electronics projects
• Printed circuit boards
• Surge protection circuits

Package Includes

• 1 X DB107 Bridge Rectifier
