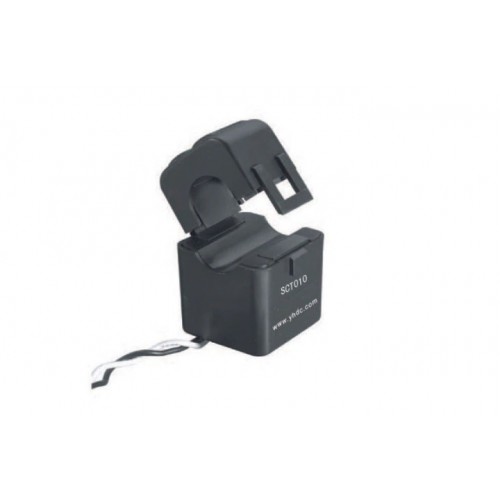

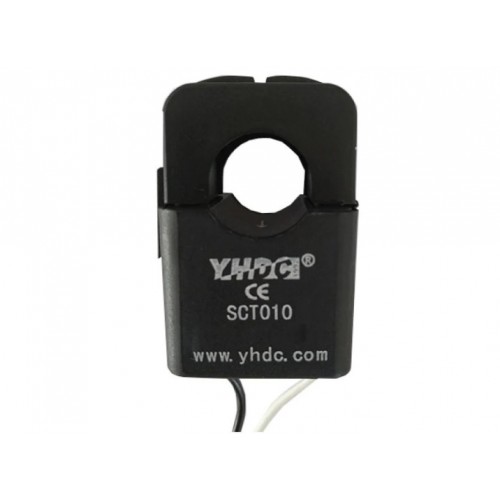

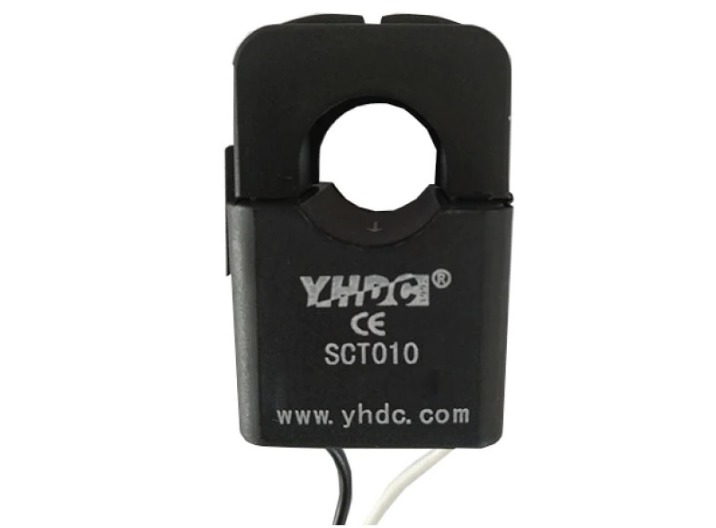

YHDC SCT010 80A : 40mA Split Core Current Transformer

YHDC SCT010 80A Split Core Current Transformer

YHDC SCT010, 80A max input, 40mA output, ideal for non-intrusive AC current measurement.

The YHDC SCT010 80A Split Core Current Transformer is designed for safe and easy AC current measurement. Its split-core design allows for simple installation around a conductor without the need for disconnection. This transformer provides a reliable output of 40mA while handling a maximum input of 80A, making it suitable for energy management and power monitoring applications.

Engineered for accuracy, the YHDC SCT010 ensures high precision in current measurement. Its compact and lightweight structure contributes to its efficiency, while non-invasive sensing guarantees safety during installation. With a dielectric strength of ≥3.5kV, this transformer is built to last, providing low energy loss and enhanced durability.

Applications for the YHDC SCT010 80A Split Core Current Transformer include smart metering systems, load monitoring, and industrial automation. This versatility makes it an essential component for any electrical setup aiming for efficiency and reliability.

Explore the range of Current and Voltage Sensors at DNA. The YHDC brand offers reliable solutions for accurate current measurement. Browse our collection for more options. Check other "Current and Voltage Sensor" that we have in stock.

At DNA, we cater to every electronics need. If you can't find specific parts, reach out to us. We can import items not in stock and support both retail and bulk orders. Explore related components like Microcontrollers, Analog ICs, Sensors, and MOSFETs. Contact Us.

Features of YHDC SCT010 80A Split Core Current Transformer

• Split-core design for easy installation
• High accuracy in current measurement
• Non-invasive sensing for safety
• Compact and lightweight structure
• Low energy loss for efficient operation

Specification of YHDC SCT010 80A Split Core Current Transformer

• Model: SCT010
• Input Current: 80A (Maximum)
• Output Current: 40mA
• Turn Ratio: 2000:1
• Operating Frequency: 50Hz – 60Hz
• Dielectric Strength: ≥3.5kV/1mA/1min
• Insulation Resistance: ≥500MΩ (DC 500V)
• Operating Temperature: -25°C to +70°C

Applications of YHDC SCT010 80A Split Core Current Transformer

• Power monitoring
• Energy management
• Smart metering systems
• Overcurrent protection
• Industrial automation

Related Links for YHDC SCT010 80A Split Core Current Transformer

• Other Products from Current and Voltage Sensor Category

Package Includes

• 1 X YHDC SCT010 80A : 40mA Split Core Current Transformer
