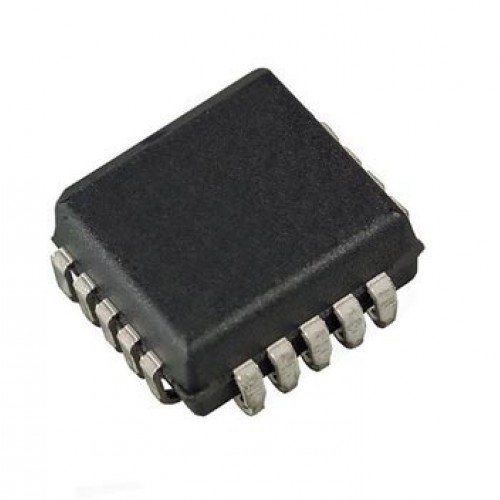

Product Images are shown for illustrative purposes only and may differ from actual product.

GAL16V8D-10LJ High Performance E2CMOS PLD Generic Array Logic™ IC


Write a review | 0 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-03-03

  • SKU: 5078 | DAG826

Availability: NotInStock priceValidUntil: 2026-03-03

  • Rs. 375.12 (inc GST)
    Rs.317.90 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

GAL16V8D-10LJ High Performance E2CMOS PLD Generic Array Logic™ IC

GAL16V8D-10LJ High Performance E2CMOS PLD Generic Array Logic™ IC

The GAL16V8, at 3.5 ns maximum propagation delay time, com-bines a high performance CMOS process with Electrically Eras-able (E2) floating gate technology to provide the highest speed performance available in the PLD market.  High speed erase times(<100ms) allow the devices to be reprogrammed quickly and efficiently. The generic architecture provides maximum design flexibility by allowing the Output Logic Macro cell (OLMC) to be configured by the user.  An important subset of the many architecture configurations possible with the GAL16V8  are the PAL architectures listed in the table of the macro cell description section.  GAL16V8  devices are capable of emulating any of these PAL  architectures with full function/fuse map/parametric compatibility.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of GAL16V8D-10LJ High Performance E2CMOS PLD Generic Array Logic™ IC

  • HIGH PERFORMANCE E2CMOS® TECHNOLOGY—3.5 ns Maximum Propagation Delay
  • 50% to 75% REDUCTION IN POWER FROM BIPOLAR—75mA TYP ICC on Low Power Device
  • ACTIVE PULL-UPS ON ALL PINS
  • EIGHT OUTPUT LOGIC MACROCELLS—Maximum Flexibility for Complex Logic Designs
  • PRELOAD AND POWER-ON RESET OF ALL REGISTERS—100% Functional Testability

Specifications of GAL16V8D-10LJ High Performance E2CMOS PLD Generic Array Logic™ IC

  • Technology: Electrically Erasable CMOS (E2CMOS).
  • Number of Macro cells: 8 programmable macro cells.
  • Propagation Delay: 10 ns (GAL16V8D-10LJ version), providing high-speed performance.
  • Programmability: Electrically erasable and programmable with up to 1000 erase/write cycles.
  • Operating Voltage: 5V ±10%.
  • Input Threshold Levels: TTL compatible inputs, making it easy to interface with TTL logic families.

Package Includes

  • 1 x GAL16V8D-10LJ   IC

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
