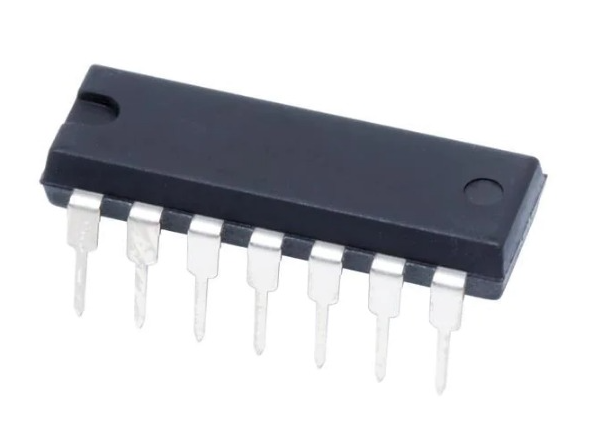

74LS08 Quad 2-Input AND Gate DIP IC

74LS08 Quad 2-Input AND Gate DIP IC

74LS08 Quad 2-Input AND Gate IC with 4 gates, low power consumption, and fast switching speed.

The 74LS08 Quad 2-Input AND Gate DIP IC features four independent AND gates, making it ideal for digital logic circuits. Built with Low Power Schottky technology, it provides fast switching speeds while minimizing power usage. This IC operates within a supply voltage range of 4.75V to 5.25V, ensuring compatibility with various applications. Its compact DIP-14 package fits easily into prototyping boards.

Engineers and hobbyists can utilize the 74LS08 Quad 2-Input AND Gate DIP IC in control systems, signal gating, and embedded systems. With a typical propagation delay of around 10ns, it efficiently processes signals, making it suitable for combination logic designs. The outputs are capable of driving 10 LS-TTL loads, ensuring reliability in complex circuits.

For those looking to enhance their projects, the 74LS08 Quad 2-Input AND Gate DIP IC is a reliable choice. Its noise margins of 0.4V (low) and 2.4V (high) ensure stable performance in various environments. This IC is perfect for educational kits and prototyping, making it accessible for students and professionals alike.

Explore the reliable options from DNA in the 7400 Series IC's. The 74LS08 Quad 2-Input AND Gate DIP IC is a key component for digital circuits. Check other 7400 Series IC's that we have in stock.

At DNA, we cater to Indian electronics buyers. If you can't find specific electronic components, let us know. We can import items as needed and support retail and bulk orders. Check out related components like SMPS, Capacitors, Sensors, DC to DC Converter Modules, and Development Modules. Contact Us.

Features of 74LS08 Quad 2-Input AND Gate DIP IC

• Contains four independent 2-input AND gates
• TTL compatible
• Fast switching speed
• Low power consumption
• Wide supply voltage range

Specifications of 74LS08 Quad 2-Input AND Gate DIP IC

• Supply Voltage: 4.75V – 5.25V
• Input Voltage HIGH (VIH): Min 2V
• Input Voltage LOW (VIL): Max 0.8V
• Output Voltage HIGH (VOH): Min 2.7V
• Output Voltage LOW (VOL): Max 0.4V
• Typical Propagation Delay: ~10ns
• Operating Temperature Range: 0°C to +70°C

Applications of 74LS08 Quad 2-Input AND Gate DIP IC

• Digital logic circuits
• Control systems
• Signal gating
• Embedded systems
• Combination logic design

Package Includes

• 1 X 74LS08 Quad 2-Input AND Gate DIP IC
