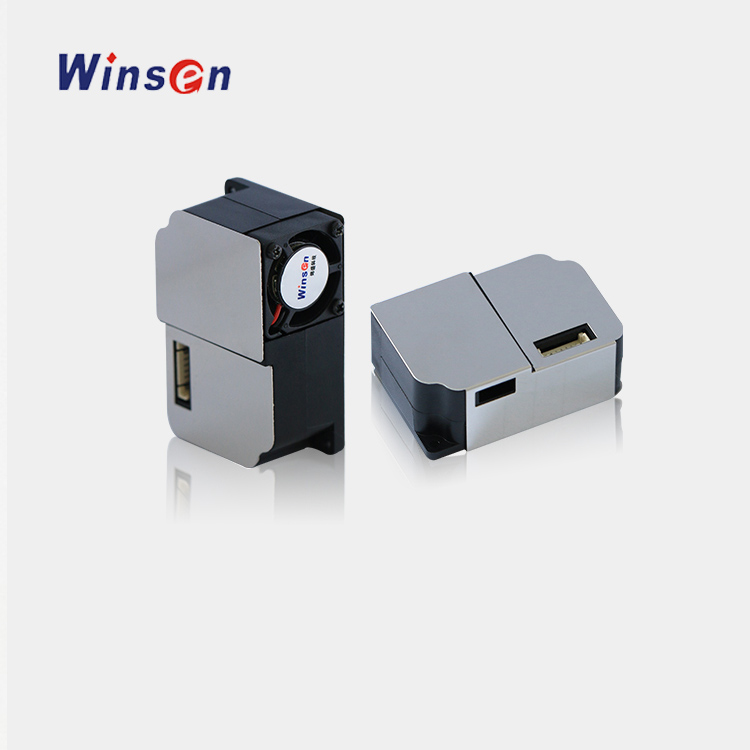

ZH03B Laser Dust Sensor Module

  • Stock: Out Of Stock
  • Brand: Winsen
  • SKU: 2139 | DAB517
  • Rs. 2,050.00 (inc GST)
    Rs.1,737.29 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

 ZH03B Air Quality Dust Sensor Module

ZH03B is a Air Quality Sensor. ZH03B Sensor detects Dust particles in Air.

ZH03 Laser Dust sensor module is a common type, small size sensor, using laser scattering principle to detect the dust particles in air, with good selectivity and stability. It is easy to use, with UART output & analog output. ZH03B sensor is perfect for Air Quality Monitoring in industrial areas and

Applications of ZH03B Dust Sensor Module

ZH03B PM2.5 Dust Sensor Particle sensor is widely used in air quality monitoring equipment, air purifiers, ventilation systems, air conditioner, and smart home equipment.

Technical parameters of ZH03B Air Quality Sensor

  • Model : ZH03B
  • Detection Gas : PM1.0, PM2.5, PM10
  • Output : UART OUTPUT (3 Volt TTL) and PWM output
  • Working Voltage : 5 Volt ± 0.1 Volt
  • Working Current : < 120 mA
  • Dormancy current :  < 10mA
  • Response Time : T90 ≤ 45s
  • Working Humidity : 0~85%RH (no condensation)
  • Working Temperature : -10~50℃
  • Storage Temperature  : -30~70℃
  • Life Span : 3 years (in air)
  • Dimension : 50 x 32.4 x 21 mm (LxWxH)
