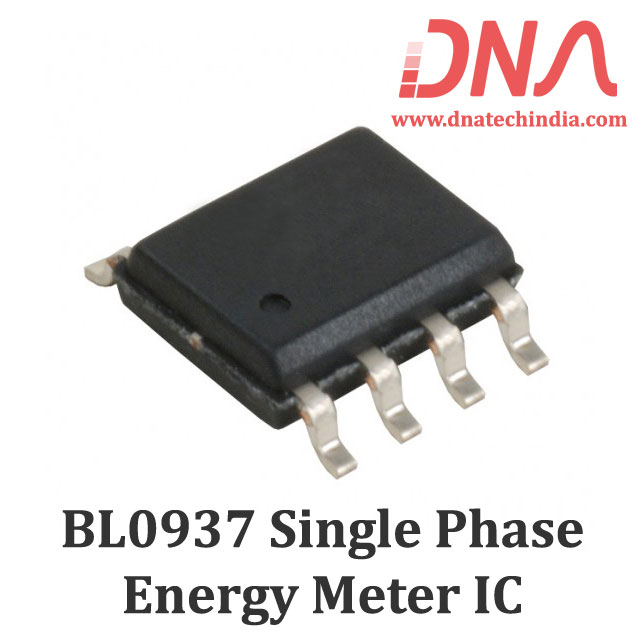

• BL0937 Single Phase Energy Meter IC

Product Images are shown for illustrative purposes only and may differ from actual product.

BL0937 Single Phase Energy Meter IC

  • Stock: 28
  • SKU: 3004 | DAE731
  • Rs. 201.78 (inc GST)
    Rs.171.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

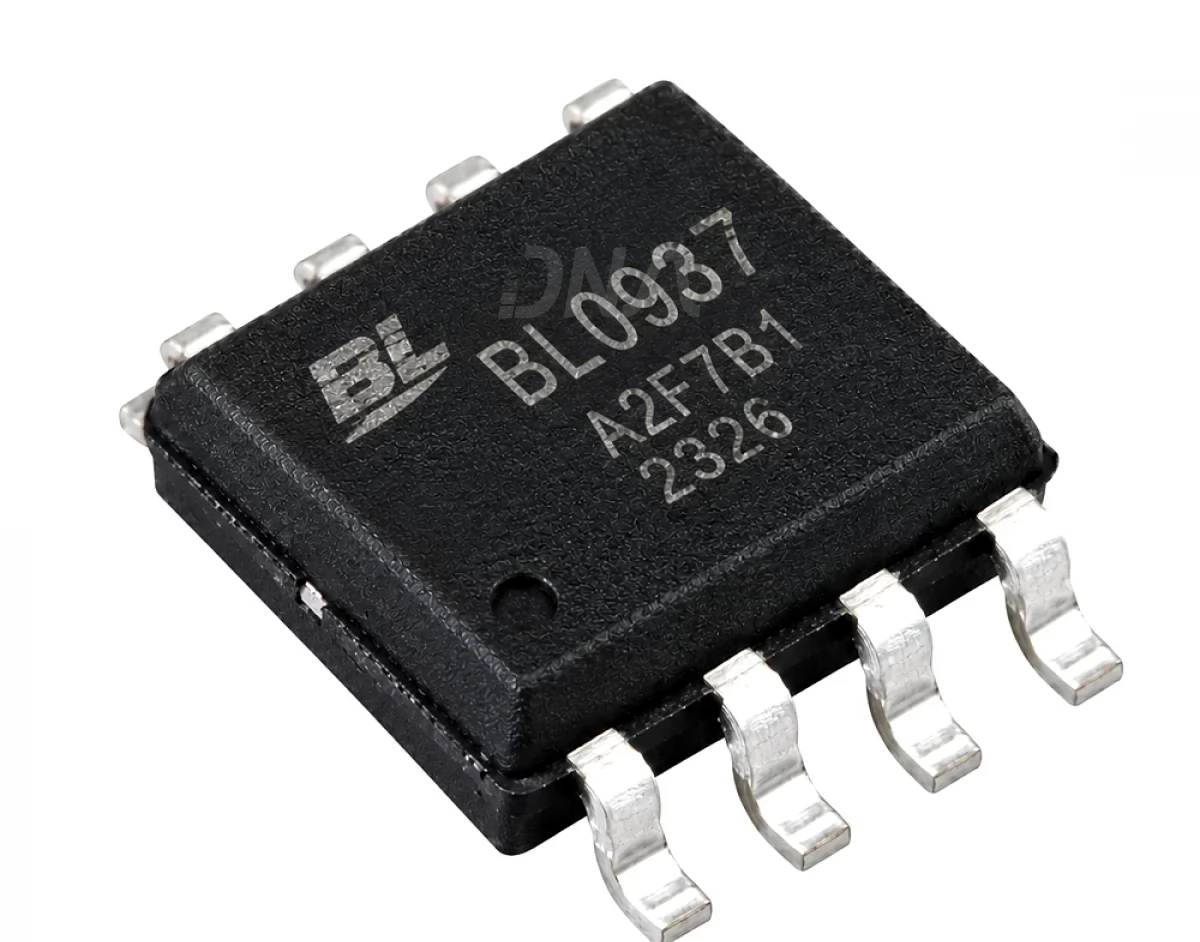

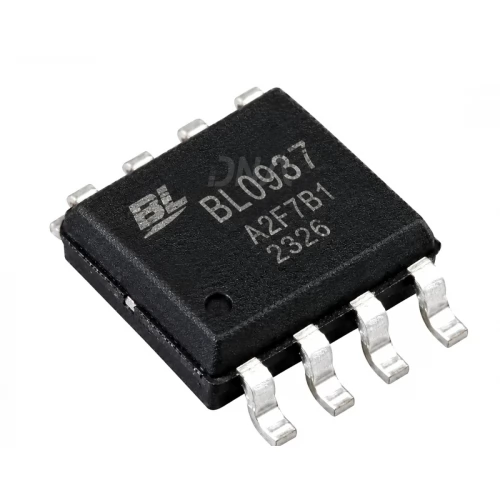

BL0937 Single Phase Energy Meter IC

BL0937 Single Phase multi-function Energy Meter IC for smart Appliance

BL0937 IC is a single-phase multi-function energy meter IC for single-phase socket, Smart Appliance, with a low cost and high accuracy.

BL0937 energy meter IC integrates two high-accuracy Sigma-Delta ADC, voltage reference, power management and other analog circuit modules,and digital signal processing circuit to calculate active power, IRMS, VRMS etc. High frequency CF1 is provided for indicating IRMS/VRMS and high frequency CF for energy metering.

BL0937 can measure the single-phase active energy, active power, current and voltage RMS and other parameters to fully meet the needs of the socket, power strip, smart appliances and others

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of BL0937 Single Phase Energy Meter IC

  • High accuracy, less than ± 0.5% error over a dynamic range of 2500: 1
  • High stability of large signal, in the condition of signal 300mA, less than ± 0.2% error in the output frequency fluctuation (CF).
  • High stability of small signal, in the condition of signal 50mA, less than ± 0.3% error in the output frequency fluctuation (CF).
  • Current and voltage RMS, current measurement range (4mA ~ 30A) @ 1mohm
  • On-Chip anti-creep protection
  • On-Chip power supply detector
  • On-Chip voltage reference of 1.218V(typical)
  • On-chip oscillator as clock source, 2MHz(typical)
  • Single 3.3V supply, low power (6 mW typical)
  • SOP8

Specifications of BL0937 Energy Meter IC

  • Measuring Range: 5ma to 20 Ampere (1 watt to 2500 watt)
  • Accuracy: 0.1%
  • Power Consumption: 1.7ma
  • Starting Current: 2ma
  • Response Time <300ms
  • Operating Voltage: 3.3 Volts

                  Related Links

                  Package Includes

                  1 x BL0937 Single Phase Energy Meter IC

                  Extra Information
                  Country of Origin China
                  Imported By ElectroSource Private Limited
