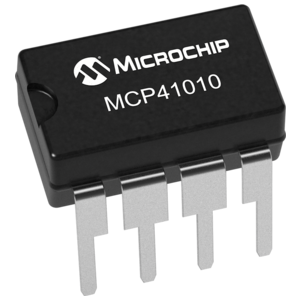

MCP41010 8-Bit Digital Potentiometer


Write a review | 1 reviews

  • Stock: 10

    Availability: InStock priceValidUntil: 2026-09-17

  • SKU: 650 | DAA047

Availability: InStock priceValidUntil: 2026-09-17

  • Rs. 396.48 (inc GST)
    Rs.336.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

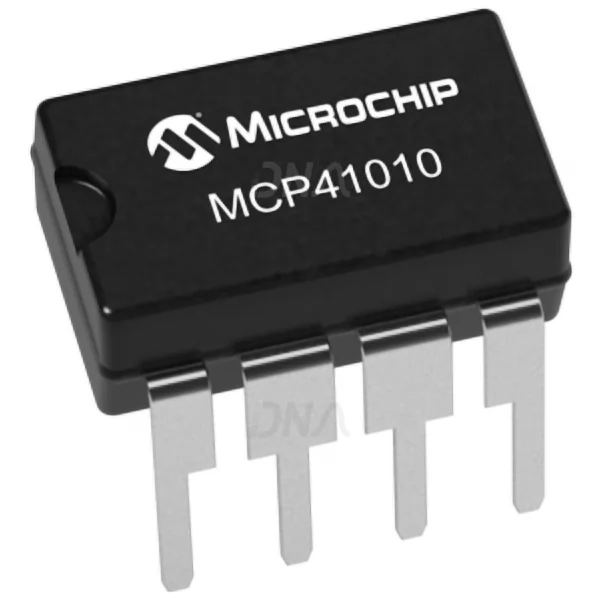

MCP41010 8-Bit Digital Potentiometer

The MCP41010 is a single-channel, 8-bit digital potentiometer features 10kΩ end-to-end resistance value with an SPI serial interface. The wiper position varies linearly and is controlled via the SPI interface. The MCP41010 has outstanding AC and DC characteristics, and consumes <1 µA during static operation.

Applications for the MCP41010 digital potentiometer include audio equipment (volume and tone controls), servo-motor control, battery charging and control, communications (line impedance matching), power supplies, instrumentation (gain, offset adjust), LCD contrast control and programmable filters. The MCP41010 is available in 8-pin PDIP and SOIC packages

Features of MCP41010 8-Bit Digital Potentiometer

  • Single Resistor Network

  • Potentiometer or Rheostat configuration options

  • Resistor Network Resolution 8-bit: 255 Resistors (256 Steps)

  • RAB Resistances options of: 10kΩ

  • Zero-Scale to Full-Scale Wiper operation

  • INL: 1LSB (max)

  • DNL: 1LSB (max)

  • SPI Compatible Serial interface

  • Standby current: 1uA (max)

  • Wide Operating Voltage: 2.7V to 5.5V

  • Wide Bandwidth (-3dB) Operation: 1 MHz (typ.)

  • Extended temperature range: -40°C to +125°C

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
