  • IN5819 schottky Diode

Product Images are shown for illustrative purposes only and may differ from actual product.

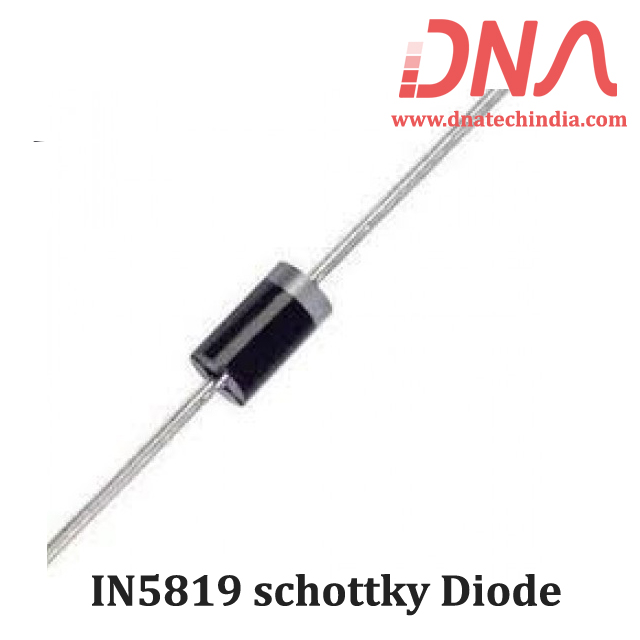

IN5819 schottky Diode

  • Stock: 6
  • SKU: 0584 | DAA360
  • Rs. 2.95 (inc GST)
    Rs.2.50 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

IN5819 schottky Diode

IN5819 schottky Diode

We have Various sizes of Diode. Check out our complete collection of Diode.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of IN5819 schottky Diode

  • Guard Ring Die Construction for Transient Protection

  • Low Power Loss, High Efficiency

  • High Surge Capability

  • High Current Capability and Low Forward Voltage Drop

  • For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Application.

  • Typical Total Capacitance CT 110 pF

  • Typical Thermal Resistance Junction to Lead RJL 15 oC/W

  • Typical Thermal Resistance Junction to Ambient RJA 50 oC/W

  • Operating and Storage Temperature Range Tj, TSTG -65 to +125 oC

Machanical Data of IN5819 Diode

  • Case : DO-41

  • Case Material : Molded Plastic. UL Flammability Classification Rating 94V-0

  • Moisture Sensitivity : Level 1 per J-STD-020C

  • Terminals : Finish  Tin. Plated Leads Solderable per MIL-STD-202, Method 208

  • Polarity : Cathode Band

  • Marking : Type Number and Date Code

  • Weight : 1 grams (approximate)
