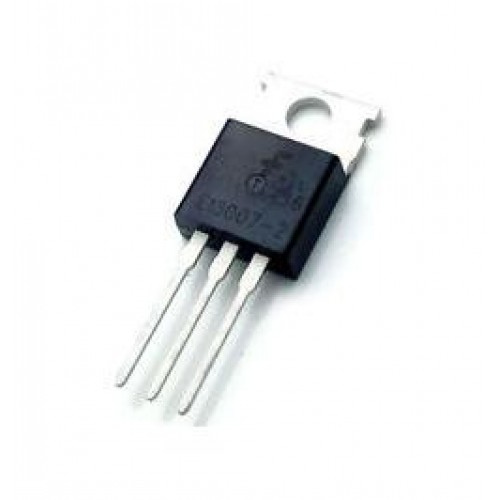

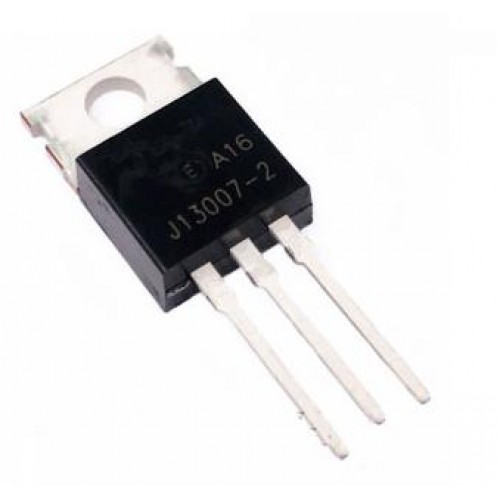

MJE13007 NPN Transistor

MJE13007 Switch-mode NPN Bipolar Power Transistor

The MJE13007 is designed for high−voltage, high−speed power switching inductive circuits where fall time is critical. It is particularly suited for 115 and 220 V switch−mode applications such as Switching Regulators, Inverters, Motor Controls, Solenoid/Relay drivers and Deflection circuits.

Specifications Of MJE-13007 Switch-mode NPN Bipolar Power Transistor

  • Product Category : Bipolar Transistors(BJT)

  • Collector- Emitter Voltage VCEO Max : 400 V
  • Collector- Base Voltage VCBO : 700 V
  • Emitter- Base Voltage VEBO : 9 V
  • Collector-Emitter Saturation Voltage : 1 V
  • Maximum DC Collector Current : 8 A
  • Gain Bandwidth Product fT : 14 MHz
  • Minimum Operating Temperature : - 65 C
  • Maximum Operating Temperature : + 150 C
  • Continuous Collector Current : 8 A
  • DC Collector/Base Gain hFE Min : 8
  • Pd - Power Dissipation : 80 W
  • Mounting Style : Through Hole
  • Transistor Polarity : NPN
  • Configuration : Single
  • RoHS : No

Features Of MJE13007 Switch-mode NPN Bipolar Power Transistor

  • SOA and Switching Applications Information
  • Standard TO−220
  • These Devices are Pb−Free and are RoHS Compliant
  • Complementary to the MJE5850 through MJE5852 Series
