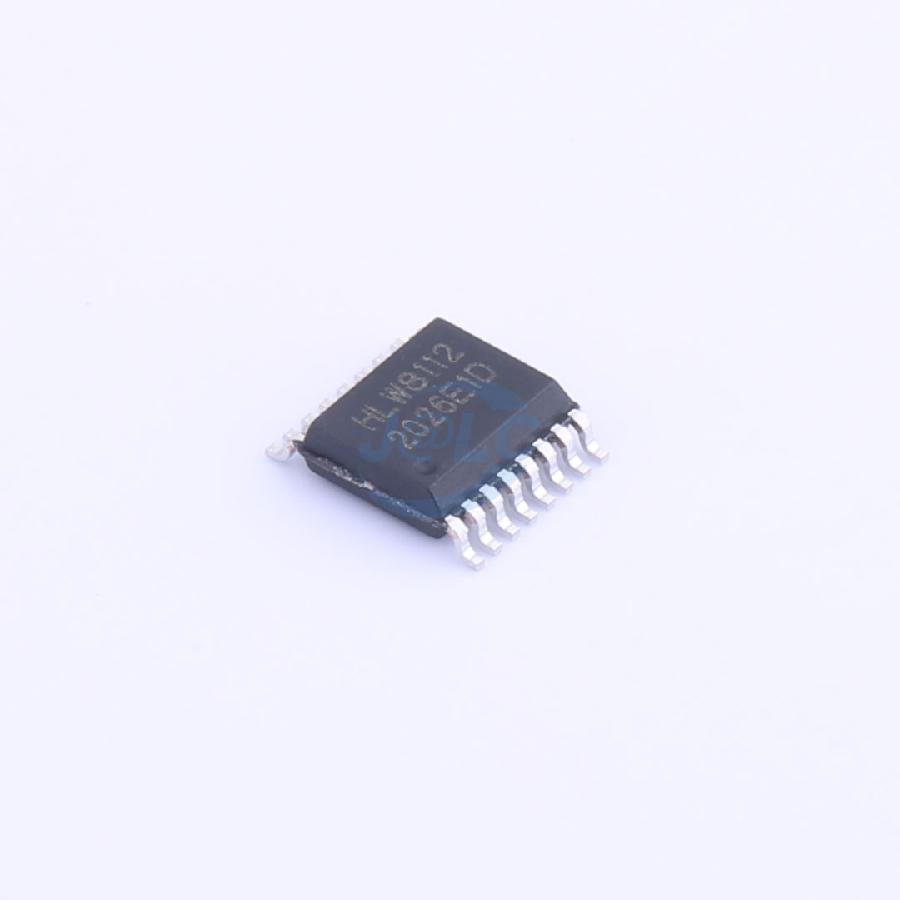

HLW8112 Metering SMD IC

HLW8112 Metering SMD IC for Energy Measurement

HLW8112 Metering SMD IC offers high-accuracy single-phase energy metering with low power consumption and supports UART or SPI data output.

The HLW8112 Metering SMD IC is engineered for precise energy measurement in single-phase systems. This integrated circuit excels in monitoring voltage, current, active power, and energy while maintaining low power usage. Its robust design includes built-in analog front-end circuits and digital signal processing units, ensuring reliable performance in smart meters and IoT energy monitoring applications. The HLW8112 Metering SMD IC features high-speed data output through UART or SPI interfaces, making it perfect for compact embedded designs.

With an operating voltage of 3.3V ±10% and a wide temperature range of -40°C to +85°C, the HLW8112 Metering SMD IC is suitable for diverse environments. Protection features against over-voltage and over-current enhance its reliability, while fast response times ensure accurate readings. This IC is an ideal choice for smart energy meters, IoT systems, and industrial automation, contributing to efficient power management.

Explore the potential of the HLW8112 Metering SMD IC in your energy monitoring projects. Its versatility and precision make it a valuable component for smart plugs and power strips, as well as appliance energy tracking solutions. Upgrade your energy management systems with this high-performance IC.

Discover quality Power Devices at DNA. The HLW8112 Metering SMD IC enhances your energy management solutions. Explore our range of Power Devices for advanced performance. Check other "Power Devices" that we have in stock.

If you're searching for specific electronic components, reach out to us. We can import parts not in stock and support retail and bulk orders. Explore related items like Sensor Modules, Analog ICs, and Microcontrollers. Contact Us.

Features of HLW8112 Metering SMD IC

• High-accuracy single-phase energy metering
• Built-in analog front end (AFE)
• Supports UART or SPI data output
• Low power consumption
• Over-voltage and over-current protection
• Fast response time
• Stable measurements

Specification of HLW8112 Metering SMD IC

• Operating Voltage: 3.3V ±10%
• Communication Interface: UART / SPI
• Measurable Parameters: Voltage, Current, Active Power, Energy
• Operating Temperature Range: -40°C to +85°C
• Package Type: SOP-8

Applications of HLW8112 Metering SMD IC

• Smart energy meters
• IoT-based energy monitoring systems
• Smart plugs and power strips
• Appliance energy usage tracking
• Smart home and industrial automation systems

Package Includes

• 1 X HLW8112 Metering SMD IC
