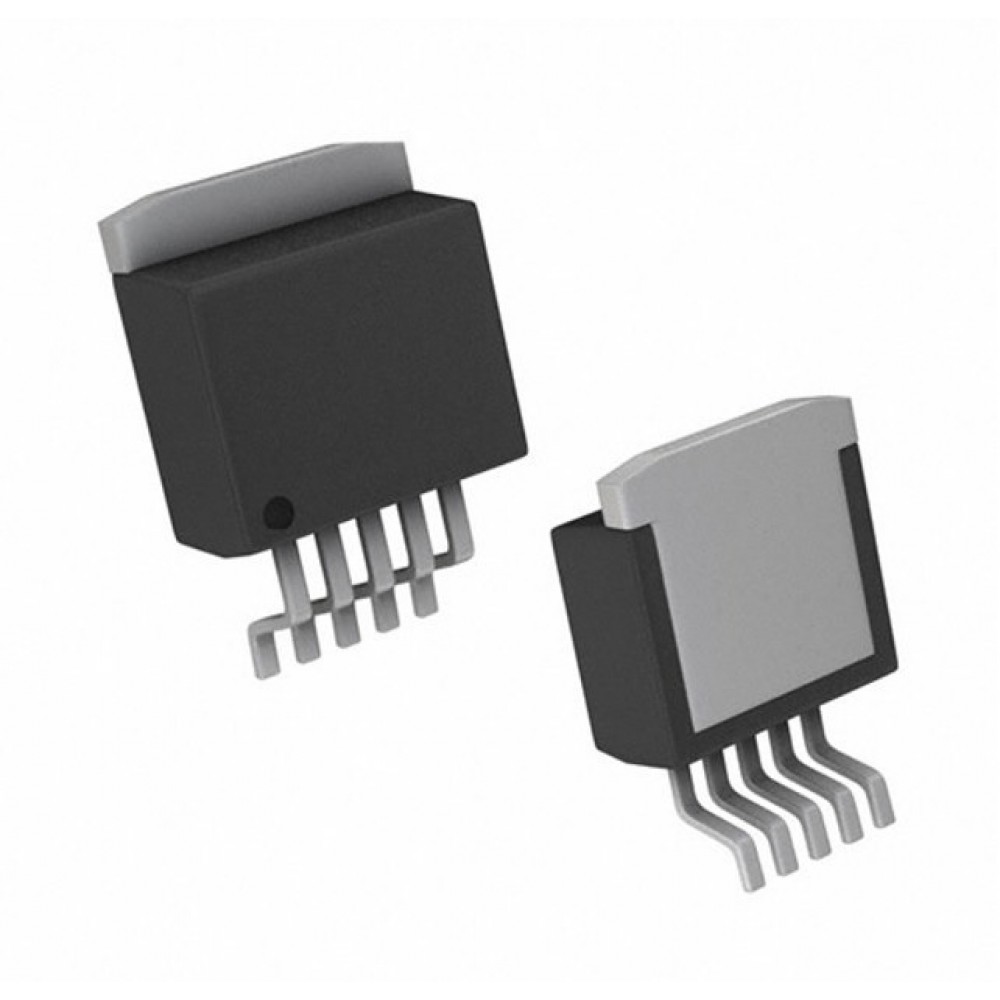

Product Images are shown for illustrative purposes only and may differ from actual product.

XLSEMI XL2596S-5.0E1 5 V Buck Switching Regulator IC

Write a review | 0 reviews

Stock: 150
Availability: InStock priceValidUntil: 2026-11-27
Brand: XL Semi
SKU: 7250 | DAF748

Rs. 46.14 (inc GST)
Rs.39.10 + GST
Qty : Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

XLSEMI XL2596S-5.0E1 5 V Buck Switching Regulator IC

XL2596S-5.0E1 fixed 5 V buck regulator IC with 3 A output capability, 150 kHz PWM switching and an integrated power switch.

The XLSEMI XL2596S-5.0E1 is a fixed 5 V buck regulator IC that steps down a higher DC input to a lower voltage. It supports up to 3 A output current and uses PWM switching at a typical 150 kHz frequency.

An integrated power switch helps simplify the regulator power stage. Built-in thermal shutdown and current limits help manage fault conditions, while the ON/OFF input lets a control signal enable or disable the IC. The 5 V output is specified for input voltages from 7 V to 40 V.

Use this TO-263-5L regulator IC in equipment such as LCD monitors, set-top boxes, ADSL modems, and telecom or networking systems. Its fixed 5 V output supports power designs that need a regulated low-voltage rail.

DNA offers the XLSEMI XL2596S-5.0E1 and other DC to DC Converter Modules for electronics projects and equipment. Check other DC to DC Converter Modules that we have in stock

Indian electronics buyers can contact DNA if they cannot find a part. We offer import support and help with retail and bulk orders. Ask us about related items such as IGBTs, sensors, connectors, development boards, Hongfa Relay and Nextion Display. Contact Us

Features of XLSEMI XL2596S-5.0E1 5 V Buck Switching Regulator IC

Integrated power switch simplifies the regulator power stage
Fixed-frequency PWM control supports step-down conversion
Thermal shutdown helps manage excess heat
Current limit and second current limit help manage overload conditions
ON/OFF input allows external control of regulator operation
Low output ripple supports regulated supply rails

Specifications of XLSEMI XL2596S-5.0E1 5 V Buck Switching Regulator IC

Input operating voltage: 4.5 V to 40 V
Output voltage: 5.0 V nominal, 4.8 V minimum to 5.2 V maximum with 7 V to 40 V input and 0.2 A to 3 A load
Output current: 3 A constant output current capability
Efficiency: 80% typical at 12 V input, 5 V output and 3 A load
Oscillator frequency: 150 kHz typical, 127 kHz minimum to 173 kHz maximum
Operating temperature range: -40 °C to 85 °C
Package: TO-263-5L surface-mount, five leads

Applications of XLSEMI XL2596S-5.0E1 5 V Buck Switching Regulator IC

LCD monitors and LCD TVs
Digital photo frames
Set-top boxes
ADSL modems and telecom or networking equipment

Package Includes

1 X XLSEMI XL2596S-5.0E1 5 V Buck Switching Regulator IC
