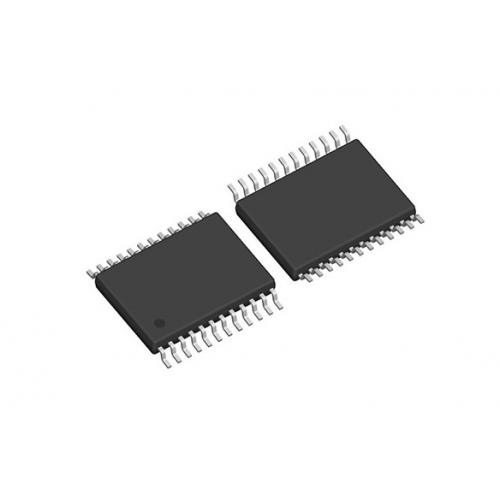

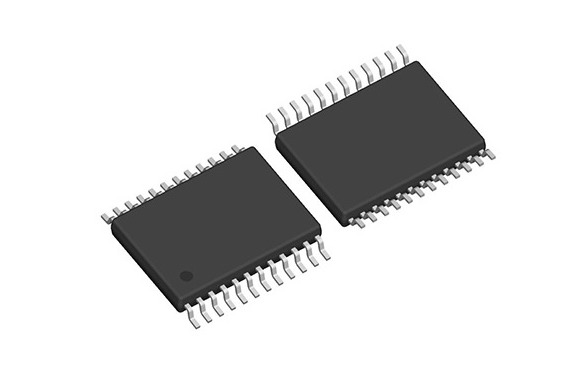

TM1668 LED Display Keypad Driver (WIDE)(SOIC24) SMD IC

TM1668 LED Display Keypad Driver SMD IC

TM1668 SMD IC for controlling 7-segment LED displays with built-in key scanning functions and serial interface.

The TM1668 LED Display Keypad Driver is a versatile SMD IC designed for controlling LED displays and key scanning. It supports up to 10 digits with 8 segments, making it ideal for applications such as digital clocks, LED display boards, and consumer electronics. With its built-in key scanning capabilities and 3-wire serial interface, it simplifies the design and reduces the need for external components. The TM1668 operates over a wide voltage range, ensuring reliability in various electronic devices.

This integrated circuit is packaged in a 24-pin SOIC format, making it suitable for compact designs. The TM1668 LED Display Keypad Driver is perfect for use in microwave ovens, induction stoves, and other electronic devices where display and control are crucial. Its features make it a preferred choice for engineers and designers working on embedded systems in India.

Explore the benefits of the TM1668 and enhance your electronic projects with ease. Whether you are designing consumer electronics or digital timers, this driver IC provides the necessary functionality for efficient operation.

At DNA Solutions, we offer a range of quality Motor Driver products from leading manufacturers. Discover the reliability of the TM1668 LED Display Keypad Driver in your projects. Check other Motor Driver that we have in stock.

If you are searching for specific electronic components, reach out to us. We can import parts that are not readily available. We support retail and bulk orders. Explore related items like HMI Display, Analog IC, Nextion Display, Microcontroller, SMPS, or Super Capacitor. Contact Us.

Features of TM1668 LED Display Keypad Driver SMD IC

• Controls up to 8 segments × 10 digits
• Built-in key scan circuit (8×3 matrix)
• Serial interface for microcontroller connection
• Wide operating voltage range
• 24-pin SOIC (WIDE) SMD package

Specification of TM1668 LED Display Keypad Driver SMD IC

• Model: TM1668
• Interface: 3-wire serial interface
• Display Output: Up to 10 digits × 8 segments
• Key Matrix: 8×3
• Package Type: SOIC24 (Wide Body)

Applications of TM1668 LED Display Keypad Driver SMD IC

• Digital clocks and timers
• LED display boards and panels
• Microwave ovens and induction stoves
• Consumer electronics and control panels

Related Links for TM1668 LED Display Keypad Driver SMD IC

• Other Products from Motor Driver Category

Package Includes

• 1 X TM1668 LED Display Keypad Driver (WIDE)(SOIC24) SMD IC
