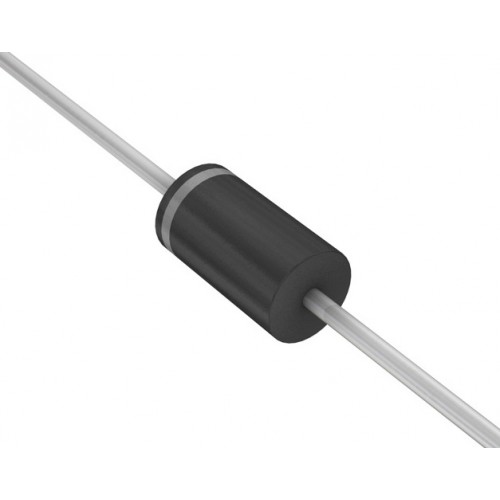

  • P6KE6.8CA DIP DIODE

Product Images are shown for illustrative purposes only and may differ from actual product.

P6KE6.8CA DIP DIODE


Write a review | 0 reviews

  • Stock: Out Of Stock
  • SKU: 7829 | DAD867

Availability: NotInStock priceValidUntil: 2025-09-23

  • Rs. 3.51 (inc GST)
    Rs.2.98 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

P6KE6.8CA DIP DIODE

P6KE6.8CA DIP DIODE

The P6KE6.8CA is a bidirectional TVS diode packaged in a DO-204AC (DIP) form factor. It offers robust protection for circuits by clamping high voltage surges and dissipating the transient energy. Its bidirectional design enables it to protect against both positive and negative voltage transients.

DNA solutions, Nashik has various types of Diode. Check out our complete collection of Diode.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of P6KE6.8CA DIP DIODE

  • Bidirectional Design: Protects against both positive and negative voltage spikes
  • Peak Power Dissipation: Capable of withstanding a peak pulse power of 600W
  • Fast Response Time: Provides near-instantaneous clamping of voltage transients
  • Low Leakage Current: Minimal leakage under normal operating conditions

Specifications of P6KE6.8CA DIP DIODE

  • Peak Pulse Power: 600W (10/1000µs)
  • Breakdown Voltage (V_BR): 6.45V to 7.14V at 1mA
  • Clamping Voltage (V_C): 10.5V at a peak pulse current of 58.1A
  • Stand-off Voltage (V_RWM): 5.8V
  • Peak Pulse Current (I_PP): 58.1A
  • Operating Temperature: -55°C to +150°C
  • Polarity: Bidirectional

Applications of P6KE6.8CA DIP DIODE

  • Power Supplies
  • Telecommunication Systems
  • Consumer Electronics
  • Automotive Electronics
  • Industrial Control Systems
  • Data and Signal Lines

    Package Includes

          1 x P6KE6.8CA DIP DIODE

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
