  • TIP41 NPN Transistor

Product Images are shown for illustrative purposes only and may differ from actual product.

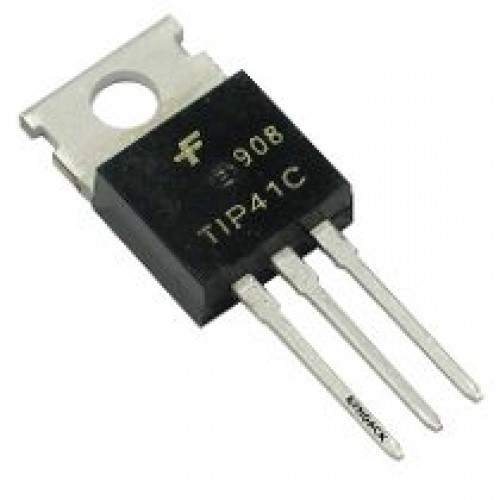

TIP41 NPN Transistor

  • Stock: 12
  • SKU: 0578 | DAA207
  • Rs. 24.78 (inc GST)
    Rs.21.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

TIP41 NPN Transistor

TIP41 transistor is used in Medium Power Linear Switching. TIP41 is Complement to TIP42/42A/42B/42C.

Features of TIP41 Transistor

  • VCBO  Collector-Base Voltage =40V

  • VCEO  Collector-Emitter Voltage =40V

  • VEBO  Emitter-Base Voltage 5 V

  • IC  Collector Current (DC) 6 A

  • ICP  Collector Current (Pulse) 10 A

  • IB  Base Current 2 A

  • PC  Collector Dissipation (TC=25°C) 65 W

  • PC  Collector Dissipation (Ta=25°C) 2 W

  • TJ  Junction Temperature 150 °C

  • TSTG  Storage Temperature - 65 ~ 150 °C

  • VCE(sat) Collector-Emitter Saturation Voltage (IC = 6A, IB = 600mA) 1.5 V

  • VBE(sat) Base-Emitter Saturation Voltage (VCE = 4V, IC = 6A) 2.0 V

  • f Current Gain Bandwidth Product (VCE = 10V, IC = 500mA) 3.0 MH
