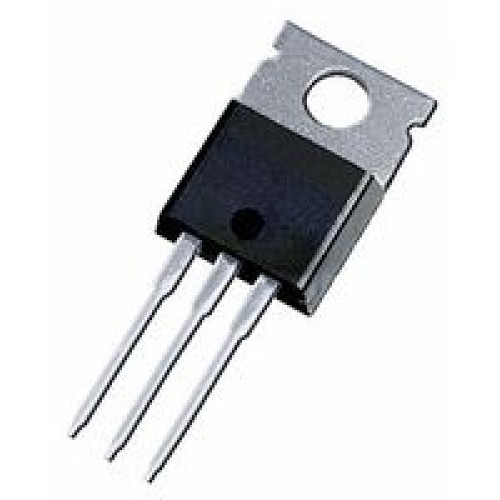

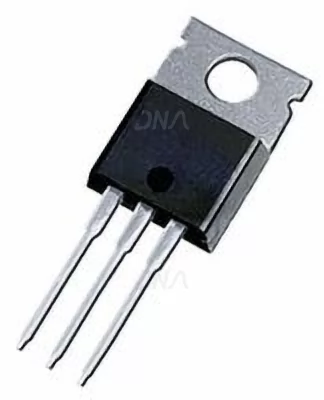

TIP31C NPN Power Transistor

The TIP31C is a base island technology NPN power transistor in TO-220 plastic package with better performances than the industry standard TIP31C that make this device suitable for audio, power linear and switching applications. The PNP type is TIP32C.

General features of TIP31C

  • New enhanced series

  • High switching speed

  • hFE improved linearity

  • hFE Grouping

  • VCBO Collector-base voltage (IE = 0) 100 V

  • VCEO Collector-emitter voltage (IB = 0) 100 V

  • VEBO Emitter-base voltage (IC = 0) 5 V

  • IC Collector current 3 A

  • ICM Collector peak current 5 A

  • IB Base current 1 A

  • PTOT Total dissipation at Tcase = 25°C 40W

        Total dissipation at Tamb = 25°C 2W

  • Tstg Storage temperature -65 to 150 °C

  • TJ Max. operating junction temperature 150 °C

Application of TIP31C

  • Linear and switching industrial application
