  • U30D60C Ultra Fast Recovery Rectifier

Product Images are shown for illustrative purposes only and may differ from actual product.

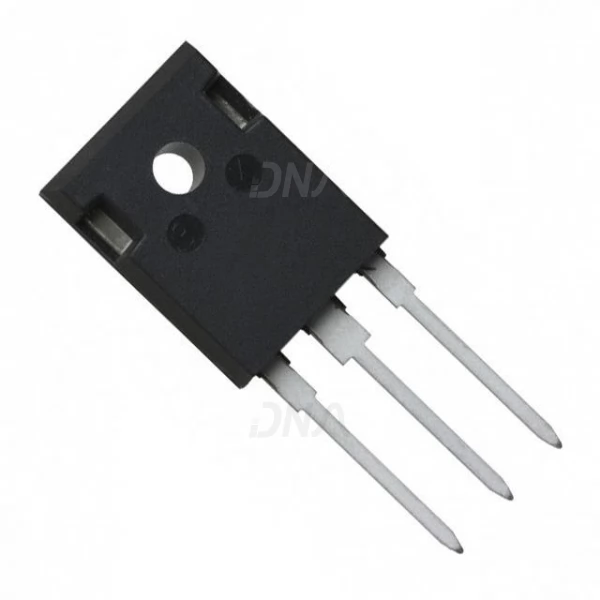

U30D60C Ultra Fast Recovery Rectifier

  • Stock: 21
  • SKU: 1122 | DAA667
  • Rs. 122.72 (inc GST)
    Rs.104.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

U30D60C Ultra Fast Recovery Rectifier

U30D60C is the 30.0 Ampere Dual Common Cathode Ultra Fast Recovery Rectifiers. Designed for use in SMPS and as free wheeling Diodes.

Features of U30D60C

  • Dual rectifier construction, positive center-tap

  • Plastic package has Underwriters Laboratory

  • Flammability Classification 94V0

  • Glass passivated chip junctions

  • Superfast recovery time, high voltage

  • Low forward voltage, high current capability

  • Low thermal resistance

  • Low power loss, high efficiency

  • High temperature soldering guaranteed:

  • 2 60oC, 0.16”(4.06mm)from case for 10 seconds

Mechanical Data of U30D60C

  • Cases : TO-3P/TO-247AD molded plastic

  • Terminals : Pure tin plated, lead free solderable per

  • MIL-STD-750. Method 2026

  • Polarity : As marked

  • Mounting position : Any

  • Mounting torque : 10in-lbs. Max.

  • Weight : 0.2 ounce, 5.6 gram approximately
