Product Images are shown for illustrative purposes only and may differ from actual product.

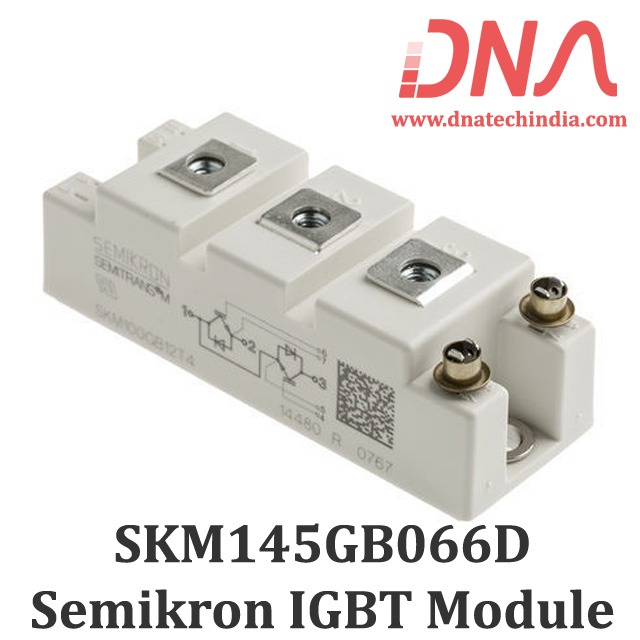

Semikron SKM145GB066D IGBT Module

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-16

  • Brand: Semikron
  • SKU: 3019 | DAE776

Availability: NotInStock priceValidUntil: 2026-12-16

  • Rs. 2,610.16 (inc GST)
    Rs.2,212.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Semikron SKM145GB066D Trench IGBT Module

SKM145GB066D IGBT Module for high voltage applications with 600V, 195A, and self-limiting short circuit capability.

The Semikron SKM145GB066D Trench IGBT Module is designed for high power applications, making it ideal for AC inverters, UPS, and electronic welders. This module features trenchgate technology, which enhances efficiency and performance. With a maximum voltage of 600V and a current rating of 195A, it ensures reliability in demanding environments. The SKM145GB066D also provides a high short circuit capability, limiting itself to 6 times the collector current, which adds a layer of safety during operation.
Applications of the Semikron SKM145GB066D Trench IGBT Module span various industrial sectors. It is particularly suited for projects that require robust power management and thermal performance. The compact dimensions of 94 x 34 x 30 mm allow for easy integration into existing systems. This module is a preferred choice for engineers focusing on optimizing performance in high voltage scenarios.
Choose the SKM145GB066D for your next electronics project to experience the benefits of advanced IGBT technology. Explore our collection of IGBT, Thyristor & Diode modules at DNA solutions for more options tailored to your needs.
At DNA, we offer a wide range of products from Semikron in the IGBT, Thyristor & Diode Modules category. Explore our collection to find the right solutions for your power applications. Check other IGBT, Thyristor & Diode Modules that we have in stock.
Are you looking for specific electronic components? At DNA, we can help you find what you need. Whether it's HMI Displays, Analog ICs, or IGBTs, we can import items not currently in stock. Contact us for support in retail and bulk purchases.

Features of Semikron SKM145GB066D Trench IGBT Module

  • Trenchgate technology
  • High short circuit capability
  • Positive temperature coefficient for VCE(sat)

Specification of Semikron SKM145GB066D Trench IGBT Module

  • Vces: 600 Volts
  • Ic: 195 Ampere
  • Icrm: 300 Ampere
  • Vges: 20
  • Tpsc: 6us
  • Dimensions: 94 x 34 x 30 mm
  • Technology: IGBT 3 (Trench)

Applications of Semikron SKM145GB066D Trench IGBT Module

  • AC Inverters
  • UPS
  • Electronic Welders

Related Links for Semikron SKM145GB066D Trench IGBT Module

Package Includes

  • 1 X Semikron SKM145GB066D IGBT Module
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
