Product Images are shown for illustrative purposes only and may differ from actual product.

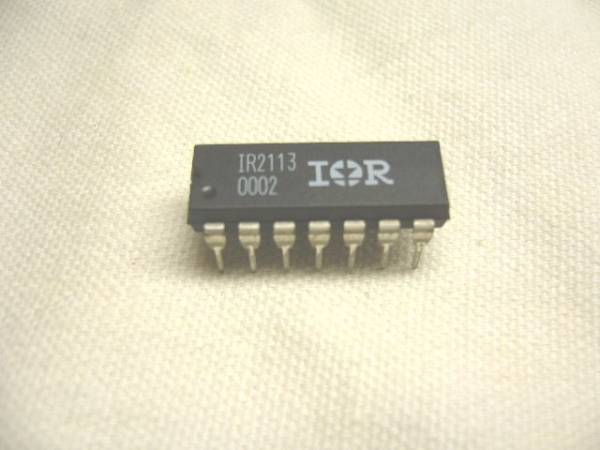

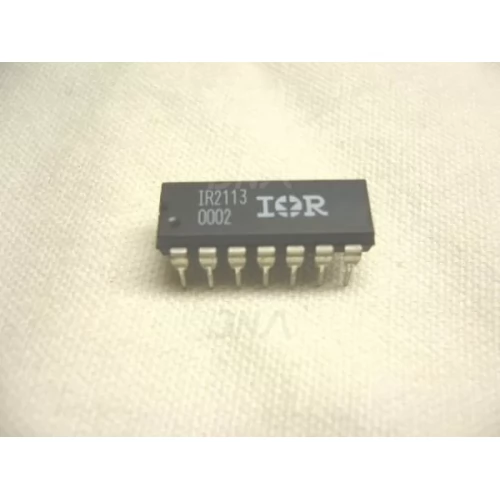

IR2113 High and Low Side Driver


Write a review | 1 reviews

  • Stock: 10

    Availability: InStock priceValidUntil: 2026-06-24

  • SKU: 633 | DAA149

Availability: InStock priceValidUntil: 2026-06-24

  • Rs. 210.04 (inc GST)
    Rs.178.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

IR2113 High and Low Side Driver

IR2113 is a high voltage, high speed power MOSFET and IGBT drivers with independent high and low side referenced output channels.

Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL output, down to 3.3V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays are matched to simplify use in high frequency applications. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 600 volts.

Features of IR2113 High and Low Side Driver

  • Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient voltage dV/dt immune

  • Gate drive supply range from 10 to 20V

  • Under voltage lockout for both channels

  • 3.3V logic compatible Separate logic supply range from 3.3V to 20V Logic and power ground ±5V offset

  • CMOS Schmitt-triggered inputs with pull-down

  • Cycle by cycle edge-triggered shutdown logic

  • Matched propagation delay for both channels

  • Outputs in phase with inputs

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
