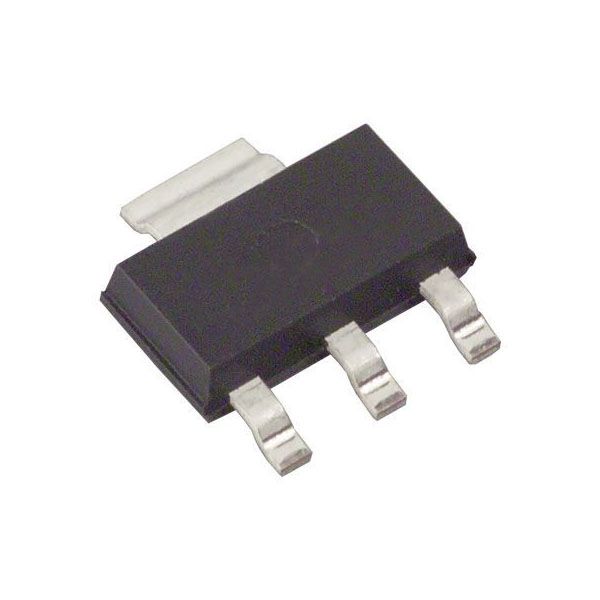

LM1117-Adjustable SMD Voltage Regulator


Write a review | 0 reviews

  • Stock: 200

    Availability: InStock priceValidUntil: 2026-08-04

  • SKU: 862 | DAB648

Availability: InStock priceValidUntil: 2026-08-04

  • Rs. 16.52 (inc GST)
    Rs.14.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

LM1117-Adjustable SMD Voltage Regulator

This is LM1117 adjustable voltage regulator. With output voltage range from 1.25 Volt to 13.8 Volts.

The voltage can be set using only two external resistors.  LM1117 is a series of low dropout voltage regulators with a dropout of 1.2V at 800mA of load current. It has the same pin-out as National Semiconductor’s industry standard LM317. In addition, it is also available in five fixed voltages, 1.8V, 2.5V, 2.85V, 3.3V, and 5V. The LM1117 offers current limiting and thermal shutdown. Its circuit includes a zener trimmed band gap reference to assure output voltage accuracy to within ±1%. The LM1117 series is available in SOT-223, TO-220, andTO-252 D-PAK packages. A minimum of 10µF tantalum capacitor is required at the output to improve the transient response and stability.

Features of LM1117-Adjustable

  • Output Voltage : Adjustable

  • Space Saving SOT-223 Package

  • Current Limiting and Thermal Protection

  • Output Current 800mA

  • Line Regulation 0.2% (Max)

  • Load Regulation 0.4% (Max)

  • Temperature Range : 0˚C to 125˚C

Applications of LM1117-Adjustable

  • 2.85V Model for SCSI-2 Active Termination

  • Post Regulator for Switching DC/DC Converter

  • High Efficiency Linear Regulators

  • Battery Charger

  • Battery Powered Instrumentation

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
