  • LM358 Dual Op-Amp

Product Images are shown for illustrative purposes only and may differ from actual product.

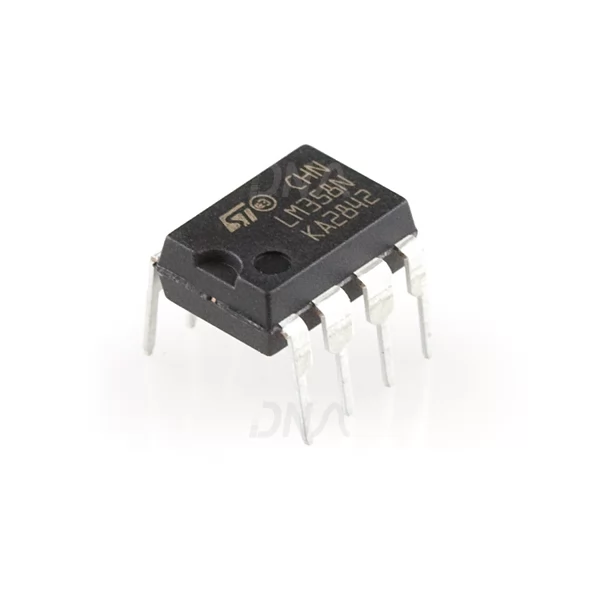

LM358 Dual Op-Amp

  • Stock: 288
  • SKU: 0806 | DAA080
  • Rs. 14.16 (inc GST)
    Rs.12.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

LM358 Dual Op-Amp

The LM358 and LM2904 are also available in a chip sized package (8-Bump micro SMD) using National’s micro SMD package technology.

The LM158 series consists of two independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.

The Application areas of LM358 include transducer amplifiers, dc gain blocks and all the conventional op amp circuits which now can be more easily implemented in single power supply systems. For example, the LM158 series can be directly operated off of the standard +5V power supply voltage which is used in digital systems and will easily provide the required interface electronics without requiring the additional ±15V power supplies.

Features of LM358

  • Internally frequency compensated for unity gain

  • Large dc voltage gain : 100 dB

  • Wide bandwidth (unity gain) : 1 MHz (temperature compensated)

  • Wide power supply range :

                — Single supply : 3V to 32V

                — or dual supplies : ±1.5V to ±16V

  • Very low supply current drain (500 µA)  essentially independent of supply voltage

  • Low input offset voltage : 2 mV

  • Input common-mode voltage range includes ground

  • Differential input voltage range equal to the power supply voltage

  • Large output voltage swing

Advantages of LM358

  • Two internally compensated op amps

  • Eliminates need for dual supplies

  • Allows direct sensing near GND and VOUT also goes to GND

  • Compatible with all forms of logic

  • Power drain suitable for battery operation
