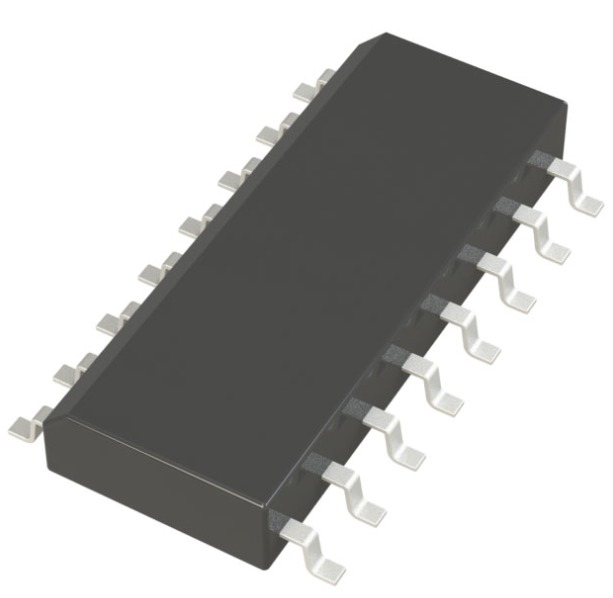

LT1336CS#PBF Half-Bridge Gate Driver IC Non-Inverting 16-SO

LT1336CS#PBF Half-Bridge Gate Driver IC Non-Inverting 16-SO

The LT1336CS#PBF is a full-featured half-bridge driver IC with a floating top gate drive, allowing it to control both the high-side and low-side N-channel MOSFETs efficiently. It incorporates advanced design features such as adaptive dead-time control, a built-in boost regulator, and undervoltage lockout. These features ensure reliable operation, minimize losses, and enhance system efficiency in a variety of high-power applications.

DNA solutions, Nashik has various types of Gate Driver IC's. Check out our complete collection of Gate Driver IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of LT1336CS#PBF Half-Bridge Gate Driver IC Non-Inverting 16-SO

  • Floating Top Driver: Capable of switching up to 60V, allowing for high-voltage applications
  • Internal Boost Regulator: Enables DC operation and maintains charge in the bootstrap capacitor, supporting operation up to 100% duty cycle
  • Fast Transition Times: Achieves 180ns transition times when driving a 10,000pF load, ensuring rapid switching
  • Adaptive Non-Overlapping Gate Drives: Prevents shoot-through currents by ensuring that the high-side and low-side MOSFETs are not on simultaneously
  • Undervoltage Lockout with Hysteresis: Actively pulls driver outputs low during low supply or start-up conditions to prevent partial turn-on of the MOSFETs

Specifications of LT1336CS#PBF Half-Bridge Gate Driver IC Non-Inverting 16-SO

  • Supply Voltage Range: Operates from 10V to 15V
  • Maximum HV Rail Voltage: 60V (absolute maximum)
  • Transition Time: 180ns with a 10,000pF load
  • Package: 16-lead SOIC (narrow 0.15 inch)

Applications of LT1336CS#PBF Half-Bridge Gate Driver IC Non-Inverting 16-SO

  • PWM of High Current Inductive Loads
  • Half-Bridge and Full-Bridge Motor Control
  • Synchronous Step-Down Switching Regulators
  • 3-Phase Brushless Motor Drive
  • High Current Transducer Drivers
  • Class D Power Amplifiers

    Package Includes

          1 x LT1336CS#PBF Half-Bridge Gate Driver IC Non-Inverting 16-SO

    Extra Information
    Country of Origin China
