Product Images are shown for illustrative purposes only and may differ from actual product.

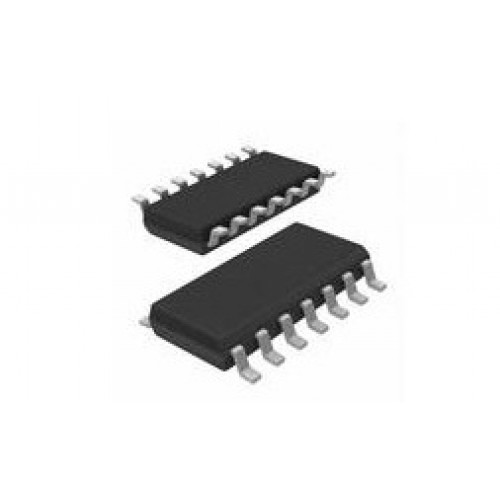

HEF4093 SMD IC (SOIC14)


Write a review | 1 reviews

  • Stock: 15

    Availability: InStock priceValidUntil: 2026-08-14

  • SKU: 7073 | DAG728

Availability: InStock priceValidUntil: 2026-08-14

  • Rs. 35.40 (inc GST)
    Rs.30.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

HEF4093 SMD Quad Two-Input NAND Gate IC

HEF4093 SMD IC (SOIC14) Quad NAND gate with wide supply voltage range and low power consumption.

The HEF4093 SMD Quad Two-Input NAND Gate IC is designed for a variety of digital logic applications. It features Schmitt trigger action, ensuring reliable switching for positive and negative signals. This IC operates within a voltage range of 3V to 15V and provides high noise immunity, making it suitable for use in noisy environments. Its low power consumption is an added advantage for battery-operated devices.

Incorporating the HEF4093 SMD IC into your designs allows for effective monostable and astable multivibrator configurations. The standardized symmetrical output characteristics ensure consistent performance across various applications. This IC is ideal for wave shaping and pulse generation tasks, offering a robust solution for electronic projects.

Use the HEF4093 SMD Quad Two-Input NAND Gate IC in your next project to achieve reliable and efficient logic operations. It is a versatile component that fits various applications, from basic logic circuits to complex digital systems.

Explore the best in 4000 Series IC's at DNA. We offer the HEF4093 SMD IC and other quality components to enhance your projects. Check other 4000 Series IC's that we have in stock.

If you are searching for electronic components in India, reach out to us. We can help you find specific parts or import them if needed. We support retail and bulk purchases. Check our range of related items like Capacitors, HMI Displays, and more. Contact Us.

Features of HEF4093 SMD Quad Two-Input NAND Gate IC

  • Quad 2-Input NAND Schmitt Triggers
  • Schmitt Trigger Action
  • Wide Supply Voltage Range
  • Low Power Consumption
  • High Noise Immunity
  • ESD Protection

Specifications of HEF4093 SMD Quad Two-Input NAND Gate IC

  • Package: SOIC-14
  • Operating Temperature Range: -40°C to +85°C
  • Supply Voltage (VDD): 3V to 15V
  • Input Voltage (VIN): 0V to VDD
  • Output Voltage (VOUT): 0V to VDD

Applications of HEF4093 SMD Quad Two-Input NAND Gate IC

  • Monostable multivibrators
  • Astable multivibrators
  • Wave shaping
  • Pulse generation

Package Includes

  • 1 X HEF4093 SMD Quad Two-Input NAND Gate IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
