Product Images are shown for illustrative purposes only and may differ from actual product.

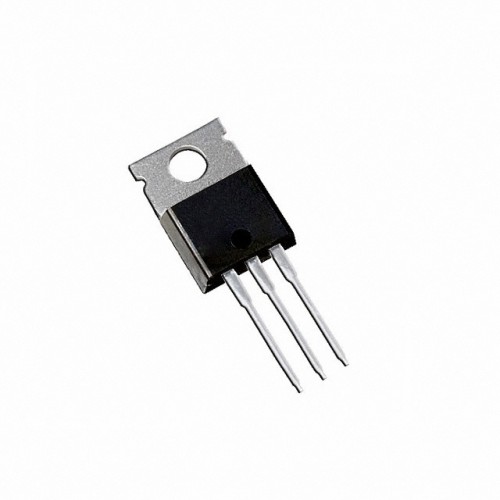

SKD502T MOSFET (N Channel)


Write a review | 4 reviews

  • Stock: 10

    Availability: InStock priceValidUntil: 2026-11-04

  • SKU: 3887 | DAF978

Availability: InStock priceValidUntil: 2026-11-04

  • Rs. 46.02 (inc GST)
    Rs.39.00 + GST

    Qty :

  • Quantity Pricing (inc GST)

    10 + 44.18 30 + 42.34 50 + 40.50 100 + 38.66

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

SKD502T N-Channel MOSFET 85V 120A TO-220

SKD502T N-Channel MOSFET, 85V, 120A, 174W power dissipation, suitable for power electronics.

The SKD502T N-Channel MOSFET is designed for high-performance applications in power electronics. With a maximum power dissipation of 174 watts and a drain current capacity of 120 Amperes, this component excels in demanding environments. Its robust construction enables it to handle high voltages up to 85V, making it ideal for applications such as motor control and battery management systems. The SKD502T N-Channel MOSFET also features a low on-state resistance of 5.5 mΩ at 50A, ensuring efficient operation and minimal heat generation.

Engineers and hobbyists alike will appreciate the versatility of the SKD502T N-Channel MOSFET. It is particularly effective in switching regulator circuits and uninterruptible power supplies (UPS). With a gate threshold voltage of 4V and a maximum gate-source voltage of 20V, it provides reliable switching performance. This makes it a preferred choice for various power management solutions in the electronics sector.

For those looking to enhance their electronic projects, the SKD502T N-Channel MOSFET is a reliable choice. Its applications range from e-bike motor control to sophisticated battery management systems. Explore the potential of this MOSFET in your next design and experience dependable performance.

Explore the reliability of MOSFET & IGBT components at DNA. The SKD502T from leading manufacturers ensures top-quality performance. Check other MOSFET & IGBT that we have in stock.

If you are seeking specific electronic components, DNA is here to assist you. We can help you find parts like Resistors, Nextion Displays, Analog ICs, Digital ICs, SMPS, and Super Capacitors. If you can't find what you need, we can import it for you. Contact Us.

Features of SKD502T N-Channel MOSFET

  • N-Channel type
  • Maximum power dissipation of 174W
  • Maximum drain current of 120A
  • Low on-state resistance of 5.5 mΩ
  • Fast switching time of 38.9 nS

Specification of SKD502T N-Channel MOSFET

  • Maximum drain-source voltage |Vds|: 85V
  • Maximum gate-source voltage |Vgs|: 20V
  • Maximum gate-threshold voltage |Vgs(th)|: 4V
  • Maximum junction temperature (Tj): 150°C
  • Total gate charge (Qg): 55nC

Applications of SKD502T N-Channel MOSFET

  • Battery management
  • Motor control in e-bikes
  • UPS (Uninterruptible Power Supplies)
  • Switching regulator circuits

Related Links for SKD502T N-Channel MOSFET 85V 120A TO-220

Package Includes

  • 1 X SKD502T N-Channel MOSFET
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
