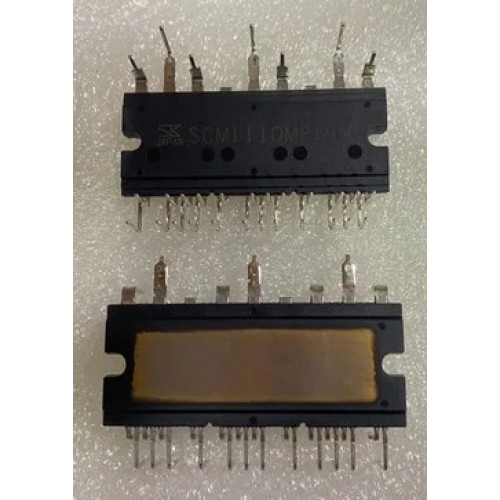

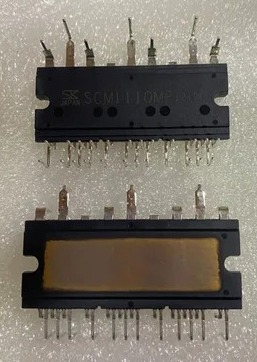

SCM1110MF High Voltage 3-phase Motor Driver IC

SCM High Voltage 3-phase Motor Driver IC

SCM1110MF Motor Driver IC controls 3-phase motors with 15A output and 600V withstand voltage.

The SCM High Voltage 3-phase Motor Driver IC is engineered for efficient control of 3-phase motors. It operates on input voltages from 85 to 253 VAC and provides a continuous output current of 15A, suitable for various applications in residential and commercial sectors. This IC withstands up to 600V, making it ideal for energy-saving devices.

This driver features independent pre-driver circuits for each half-bridge, which prevents simultaneous high- and low-side switching. It includes integrated fast recovery diodes and supports CMOS inputs from 3.3V to 5V. The SCM High Voltage 3-phase Motor Driver IC enhances performance by optimizing gate drive resistance and reducing inrush current.

Applications include air conditioner fan motors, refrigerator compressor motors, washing machine main motors, and air conditioner compressor motors. Its reliability and efficiency make the SCM High Voltage 3-phase Motor Driver IC a valuable choice for modern electronic designs.

Explore reliable Motor Driver solutions from SCM at DNA. Find the perfect fit for your motor control needs. Check other Motor Driver that we have in stock.

If you need specific electronic components, reach out to us. We can import parts if they are not available and support both retail and bulk orders. Check out related items like MOSFET, Microcontroller, IGBT, Diode, Sensor, and Nextion Display. Contact Us.

Features of SCM High Voltage 3-phase Motor Driver IC

• Independent pre-driver circuits
• Protection against simultaneous high- and low-side turning on
• Integrated Fast Recovery Diode (FRD)
• CMOS compatible input (3.3 to 5 V)
• Bootstrap diodes for inrush current suppression

Specification of SCM High Voltage 3-phase Motor Driver IC

• Input Voltage: 85 to 253 VAC
• Output Current: 15 A (continuous)
• Breakdown Voltage: 600 V
• Package Type: DIP with thermal pad

Applications of SCM High Voltage 3-phase Motor Driver IC

• Air conditioner fan motor
• Refrigerator compressor motor
• Washing machine main motor
• Air conditioner compressor motor

Package Includes

• 1 X SCM High Voltage 3-phase Motor Driver IC
