NE556 Dual Bipolar Timers

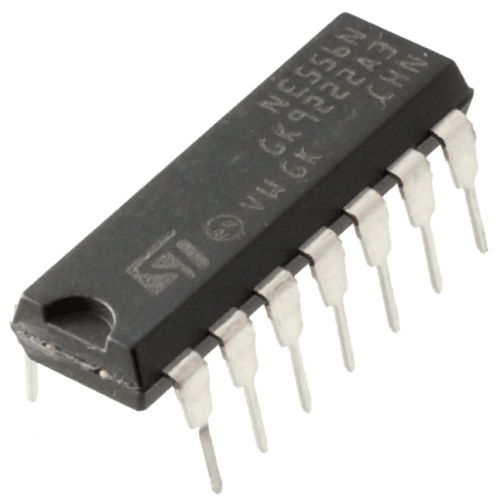

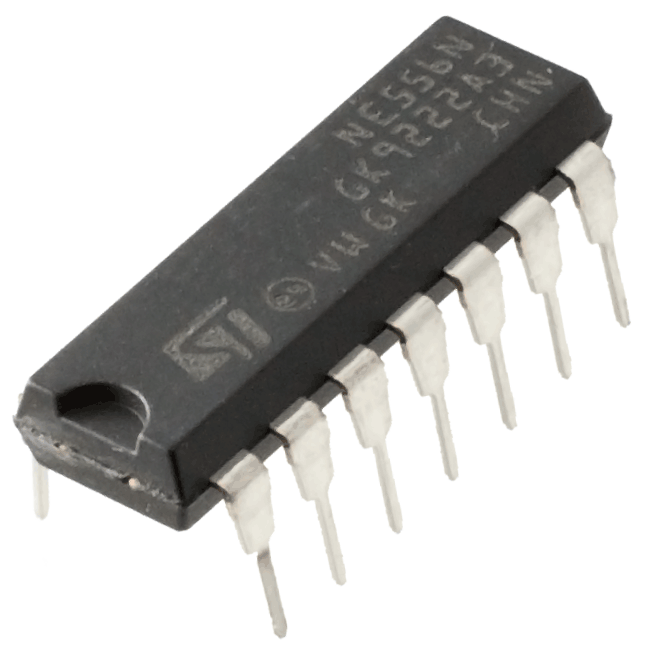

NE556 Dual Bipolar Timer

NE556 Timer with dual independent circuits, astable/monostable modes, and max frequency of 500 kHz.

The NE556 Dual Bipolar Timer offers two independent timing circuits, ideal for various applications. It operates in both astable and monostable modes, providing flexibility for timing needs. With a maximum frequency exceeding 500 kHz, the NE556 Dual Bipolar Timer delivers precise timing from microseconds to hours. Its output can source or sink up to 200 mA and is TTL compatible, ensuring seamless integration into projects.

Temperature stability is a significant feature of the NE556 Dual Bipolar Timer, with a stability of 0.005% per °C. This makes it suitable for high-reliability applications. The adjustable duty cycle allows for customization based on specific requirements, enhancing its versatility in design.

Ideal for timing applications in electronics, the NE556 Dual Bipolar Timer is perfect for timers, pulse generation, and frequency division. Its compact design and robust performance make it a reliable choice for engineers and hobbyists alike.

Explore the precision of the NE556 Dual Bipolar Timer from DNA. This reliable OPAMP component suits various timing applications. Check other OPAMP that we have in stock.

If you're searching for specific electronic components, DNA can assist you. We can import hard-to-find items and support bulk orders. Explore related items like Inductors, DC to DC Converter Modules, Super Capacitors, Microcontrollers, SMPS, and Programmers. Contact Us

Features of NE556 Dual Bipolar Timer

• Dual independent timing circuits
• Operates in astable and monostable modes
• Max frequency over 500 kHz
• Output can source/sink 200 mA
• Adjustable duty cycle
• TTL compatible
• Temperature stability of 0.005% per °C

Specification of NE556 Dual Bipolar Timer

• Timing range from microseconds to hours
• Operating voltage: 4.5V to 15V
• Max operating frequency: 500 kHz

Applications of NE556 Dual Bipolar Timer

• Timing circuits
• Pulse generation
• Frequency division
• Signal modulation
• Timing control in electronics

Package Includes

• 1 X NE556 Dual Bipolar Timer
