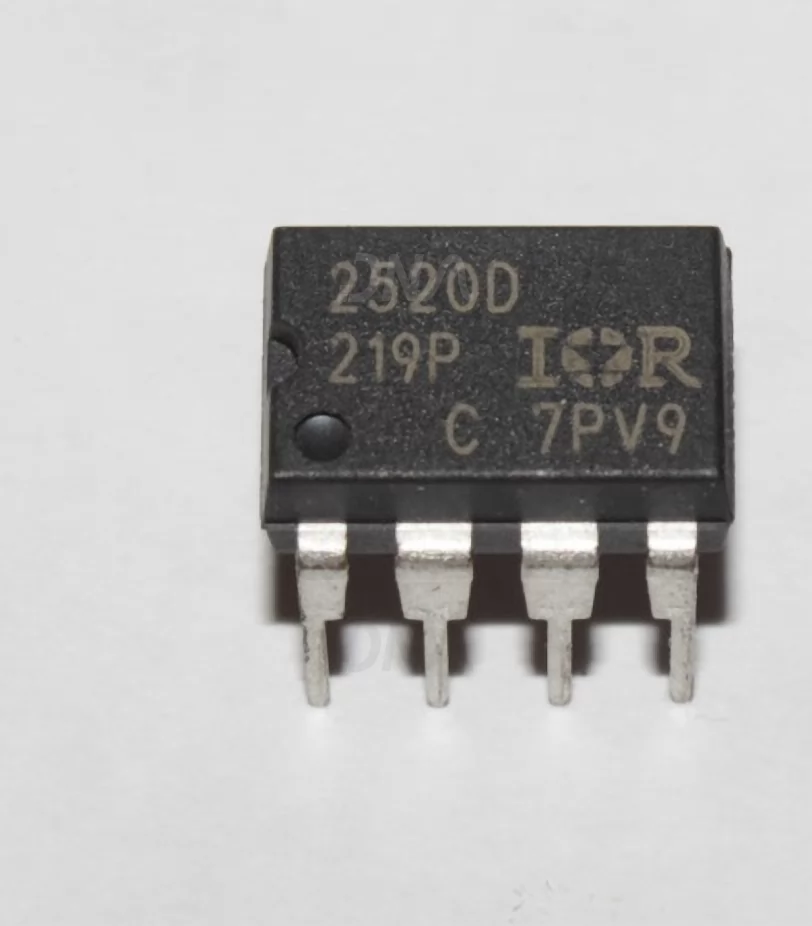

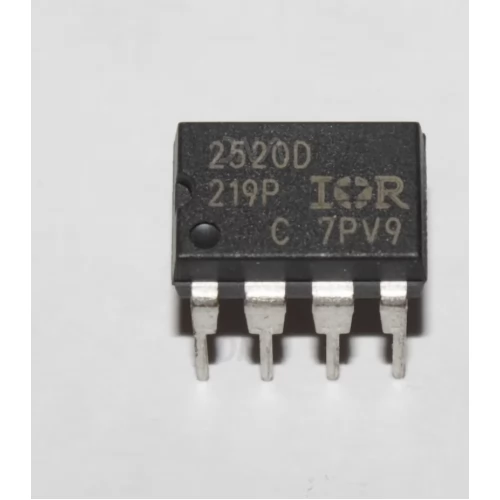

  • IR2520D Adaptive Ballast Controller

Product Images are shown for illustrative purposes only and may differ from actual product.

IR2520D Adaptive Ballast Controller

  • Product Code: 714
  • Availability: 9
  • Price :

    Rs.105.02 (inc GST)

    Qty :

  • Quantity Pricing (inc GST)

    5 + 99.12 10 + 94.40

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Same day dispatch for Most orders if payment done before 4 pm. Delivery Normally takes 2 to 7 working days depending upon your location.

IR2520D Adaptive Ballast Controller

The IR2520D(S) is a complete adaptive ballast controller and 600V half-bridge driver integrated into a single IC for fluorescent lighting applications. The IC includes adaptive zero-voltage switching (ZVS), internal crest factor over-current protection, as well as an integrated bootstrap FET. The heart of this IC is a voltage controlled oscillator with externally programmable minimum frequency. All of the necessary ballast features are integrated in a small 8-pin DIP or SOIC package.

Features IR2520D Adaptive Ballast Controller

  • 600V Half Bridge Driver

  • Integrated Bootstrap FET

  • Adaptive zero-voltage switching (ZVS)

  • Internal Crest Factor Over-Current Protection

  • 0 to 6VDC Voltage Controlled Oscillator

  • Programmable minimum frequency

  • Micropower Startup Current (80uA)

  • Internal 15.6V zener clamp on Vcc

  • Small DIP8/SO8 Package

  • Also available LEAD-FREE (PbF)
